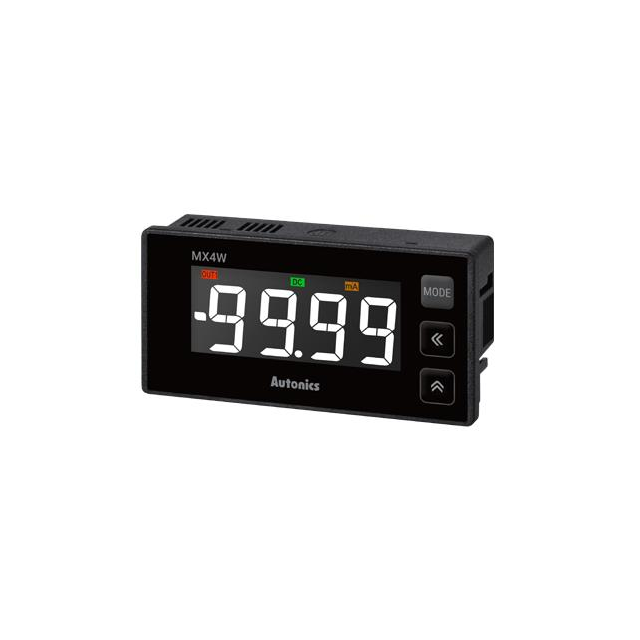

MX4W-A-F1

Active

AUTONICS

AC/DC AMP 0-5A NPN 24-240VAC/VDC

Search across all available documentation for this part.

Active

AUTONICS

AC/DC AMP 0-5A NPN 24-240VAC/VDC

Technical Specifications

Parameters and characteristics for this part

Specification	MX4W-A-F1

Display Characters - Height [y]	19 mm
Display Characters - Height [y]	0.748 in
Display Type	LCD - White Characters
Measuring Range [Max]	5 A
Measuring Range [Min]	0 A
Measuring Type	Current
Mounting Type	Panel Mount, DIN Rail
Number of Characters Per Row	4
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	Solid State
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Display Type	Display Characters - Height [y]	Display Characters - Height [y]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Measuring Range [Max]	Measuring Range [Min]	Type	Mounting Type	Output Type	Measuring Type	Number of Characters Per Row
AUTONICS MX4W-A-F1	LCD - White Characters	19 mm	0.748 in	Screw Terminal	24 VAC	240 VAC	-10 °C	50 °C	5 A	0 A	Ammeter	DIN Rail Panel Mount	Solid State	Current	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 272.00

General part information

Ammeter LCD - White Characters Display DIN Rail, Panel Mount
