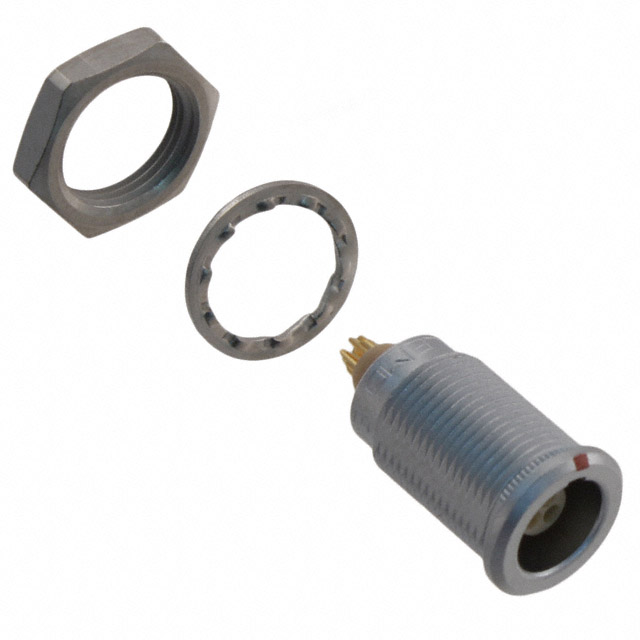

EGG.00.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.00.303.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shielding	Shielded

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Feature	Current Rating (Amps)	Connector Type	Shell Material	Color	Primary Material	Shielding	Insert Material	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Orientation	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Finish
LEMO EGG.00.303.KLL	59 Áin	1.5 Ám	Bronze	Bulkhead - Rear Side Nut	3 A	Receptacle Female Sockets	Brass	Black	Metal	Shielded	Polyetheretherketone (PEEK)	Gold	303	IP50	G	UL94 V-0	-55 °C	250 °C	Push-Pull
LEMO EGG.00.303.CLL	59 Áin	1.5 Ám	Bronze	Bulkhead - Rear Side Nut	3 A	Receptacle Female Sockets	Brass	Silver	Metal	Shielded	Polyetheretherketone (PEEK)	Gold	303	IP50	G	UL94 V-0	-55 °C	250 °C	Push-Pull	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
