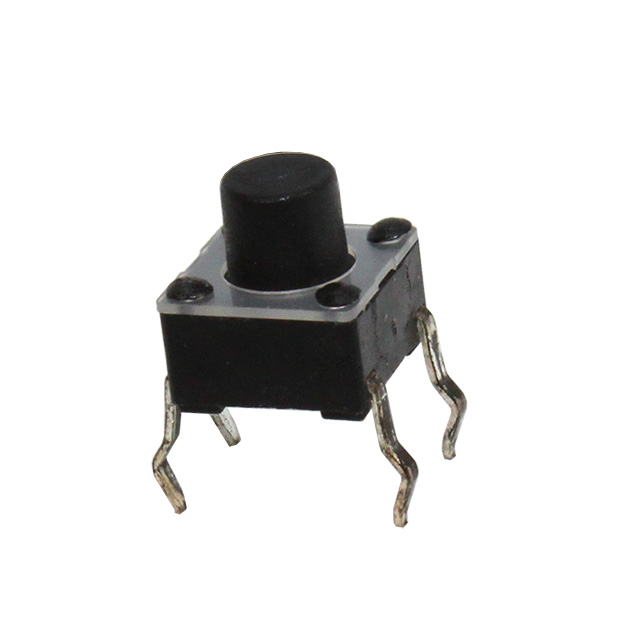

CT11025.0F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT11025.0F260

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Orientation	Switch Function	Outline [y]	Outline [x]	Illumination	Termination Style	Switch Travel	Actuator Type	Actuator Height off PCB, Vertical	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Contact Rating @ Voltage	Mounting Type	Operating Force
CIT Relay and Switch CT11025.0F160	Top Actuated	Off-Mom	6 mm	6 mm	Non-Illuminated	PC Pin	0.25 mm	Standard	5 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 °C	SPST-NO	0.05 A 50 VDC	Through Hole
CIT Relay and Switch CT11025.0F100	Top Actuated	Off-Mom	6 mm	6 mm	Non-Illuminated	PC Pin	0.25 mm	Plunger for Cap	5 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 °C	SPST-NO	0.05 A 50 VDC	Through Hole	100 gf
CIT Relay and Switch CT11025.0F260	Top Actuated	Off-Mom	6 mm	6 mm	Non-Illuminated	PC Pin	0.25 mm	Plunger for Cap	5 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 °C	SPST-NO	0.05 A 50 VDC	Through Hole	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
