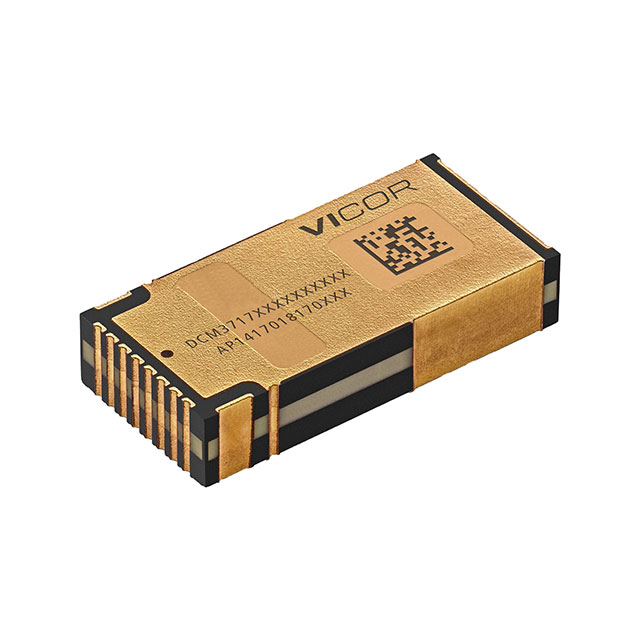

DCM3717S60E14G5TN0
ObsoleteVicor Corporation
DC DC CONVERTER 12.2V 750W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCM3717S60E14G5TN0
ObsoleteVicor Corporation
DC DC CONVERTER 12.2V 750W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM3717S60E14G5TN0 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 62.5 A |
| Efficiency | 96.8 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 16-SMD Module |
| Power (Watts) | 750 W |
| Size / Dimension [x] | 36.7 mm |
| Size / Dimension [x] | 1.45 " |
| Size / Dimension [y] | 0.68 in |
| Size / Dimension [y] | 17.3 mm |
| Size / Dimension [z] | 0.29 " |
| Size / Dimension [z] | 7.4 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Output 1 | 12.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DCM3717 Series
Non-Isolated PoL Module DC DC Converter 1 Output 12.2V 62.5A 40V - 60V Input
