SC122ULTRT
ObsoleteSemtech Corporation
IC REG BOOST 3.3V 350MA 6MLPD
Deep-Dive with AI
Search across all available documentation for this part.
SC122ULTRT
ObsoleteSemtech Corporation
IC REG BOOST 3.3V 350MA 6MLPD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC122ULTRT |
|---|---|
| Current - Output | 350 mA |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-UFDFN Exposed Pad |

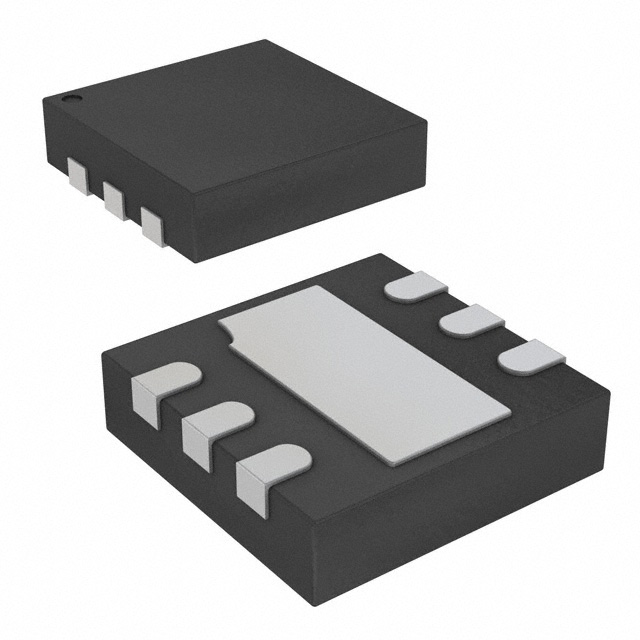

| Supplier Device Package | 6-MLPD-UT (1.5x2) |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 1.6 V |
| Voltage - Input (Min) [Min] | 0.7 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC122 Series
Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 350mA (Switch) 6-UFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
