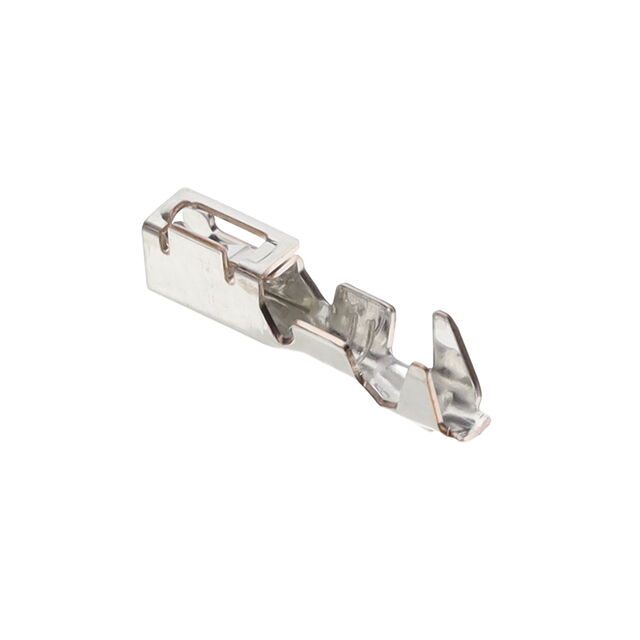

DF63A-2022SCF

Active

Hirose Electric USA, Inc.

CONN CRIMP SKT 20-22AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF63A-2022SCF

Active

Hirose Electric USA, Inc.

CONN CRIMP SKT 20-22AWG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF63A-2022SCF

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Socket
Type	Stamped
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	20 AWG

DF63A Series

Part	Note	Insulation Material	Fastening Type	Color	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Mounting Type	Contact Termination	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish	Type	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions Loaded	Contact Finish - Post	Insulation Color
Hirose Electric USA, Inc. DF63A-5EP-3.96C	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	Black	0.156 in	3.96 mm	1	105 ░C	-55 °C	Plug	Male Pin	Free Hanging (In-Line)	Crimp
Hirose Electric USA, Inc. DF63A-2EP-3.96C	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	Black	0.156 in	3.96 mm	1	105 ░C	-55 °C	Plug	Male Pin	Free Hanging (In-Line)	Crimp	2
Hirose Electric USA, Inc. DF63A-1618SCA													Crimp		16 AWG	18 AWG	Socket	Gold	Stamped
Hirose Electric USA, Inc. DF63A-4EP-3.96C	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	Black	0.156 in	3.96 mm	1	105 ░C	-55 °C	Plug	Male Pin	Free Hanging (In-Line)	Crimp	4
Hirose Electric USA, Inc. DF63A-1618SC													Crimp		16 AWG	18 AWG	Socket	Tin	Stamped
Hirose Electric USA, Inc. DF63A-6EP-3.96C	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	Black	0.156 in	3.96 mm	1	105 ░C	-55 °C	Plug	Male Pin	Free Hanging (In-Line)	Crimp	6
Hirose Electric USA, Inc. DF63A-2P-3.96DSA		Polybutylene Terephthalate (PBT) Glass Filled	Latch Lock				1	105 ░C	-35 °C	Header	Male Pin	Through Hole		2						Phosphor Bronze	10 mm	0.394 "	1 µm	39.4 µin	Solder	Square	10 A	UL94 V-0	0.156 in	3.96 mm	630 V	All	Gold	Black
Hirose Electric USA, Inc. DF63A-2022SC													Crimp		20 AWG	22 AWG	Socket	Tin	Stamped
Hirose Electric USA, Inc. DF63A-2022SCF													Crimp		20 AWG	22 AWG	Socket	Tin	Stamped
Hirose Electric USA, Inc. DF63A-2022SCA													Crimp		20 AWG	22 AWG	Socket	Gold	Stamped

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
		10	$ 0.20
		25	$ 0.18
		50	$ 0.17
		100	$ 0.16
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.11
	Tape & Reel (TR)	4000	$ 0.07
		8000	$ 0.06
		12000	$ 0.06
		28000	$ 0.05
		100000	$ 0.05

Description

General part information

DF63A Series

Socket Contact Tin 20-22 AWG Crimp Stamped
