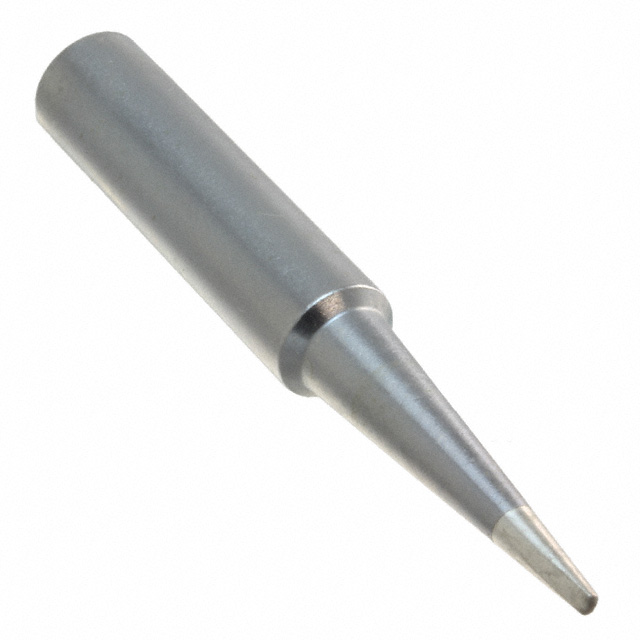

T18-DL12

Active

American Hakko Products, Inc.

TIP,1.2LD,FX-8801/907/900M/913

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

TIP,1.2LD,FX-8801/907/900M/913

Technical Specifications

Parameters and characteristics for this part

Specification	T18-DL12

For Use With/Related Products	900M, FX-8801, 907, 913, FX-600
Height [z]	0.7 mm
Height [z]	0.028 in
Length	0.886 in
Length	22.5 mm
Tip Shape	Chisel
Tip Type	Soldering
Width	0.047 in
Width	1.19 mm

Part	For Use With/Related Products	Length	Length	Tip Type	Height [z]	Height [z]	Tip Shape	Width [x]	Width [x]	Width [y]	Width [y]	Width	Width
American Hakko Products, Inc. T18-D32/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 in	14.5 mm	Soldering	0.02 in	0.5 mm	Chisel	0.126 in	3.2 mm
American Hakko Products, Inc. T18-D12/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 in	14.5 mm	Soldering	0.028 in	0.7 mm	Chisel	0.047 in	1.2 mm
American Hakko Products, Inc. T18-D16/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 in	14.5 mm	Soldering	0.02 in	0.5 mm	Chisel			1.6 mm	0.063 in
American Hakko Products, Inc. T18-DL12/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.886 in	22.5 mm	Soldering	0.028 in	0.7 mm	Chisel	0.047 in	1.2 mm
American Hakko Products, Inc. T18-D24/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 in	14.5 mm	Soldering	0.02 in	0.5 mm	Chisel			2.4 mm	0.094 in
American Hakko Products, Inc. T18-DL12	900M 907 913 FX-600 FX-8801	0.886 in	22.5 mm	Soldering	0.028 in	0.7 mm	Chisel					0.047 in	1.19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TIP,1.2LD,FX-8801/907/900M/913
