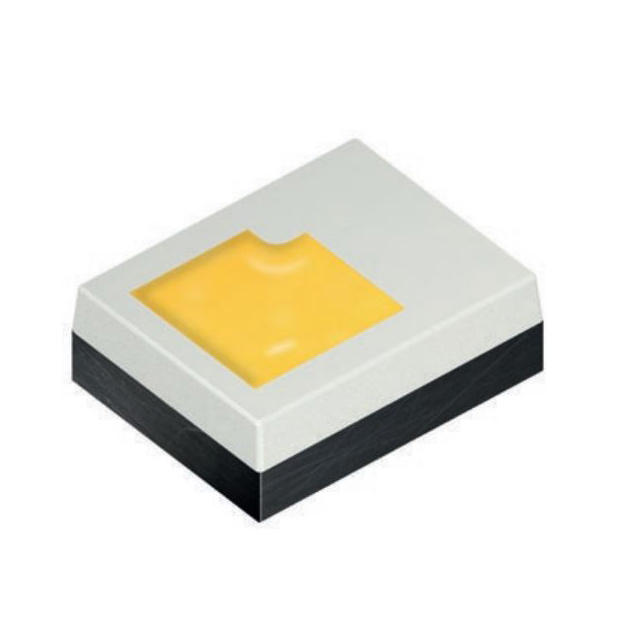

LCY CEUP-6L6M-5F5G-8E8G-700-R18-Z
Activeams-OSRAM USA INC.
LED OSLON COMPACT YLW SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCY CEUP-6L6M-5F5G-8E8G-700-R18-Z
Activeams-OSRAM USA INC.
LED OSLON COMPACT YLW SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCY CEUP-6L6M-5F5G-8E8G-700-R18-Z |
|---|---|
| Color | Yellow |
| Current - Max [Max] | 1 A |
| Height - Seated (Max) [Max] [z] | 0.82 mm |
| Height - Seated (Max) [Max] [z] | 0.032 " |
| Lumens/Watt @ Current - Test | 79 lm/W |
| Luminous Flux @ Current/Temperature | 175 lm |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.075 in |
| Size / Dimension [x] | 1.9 mm |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 1.67 | |||
| 100 | $ 1.29 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.00 | |||
| 2000 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 1.67 | |||
| 100 | $ 1.29 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.00 | |||
| 2000 | $ 0.95 | |||
| Tape & Reel (TR) | 4000 | $ 0.95 | ||
| 8000 | $ 0.92 | |||
Description
General part information
LCYCEUP Series
LED Lighting Color OSLON® Compact CL Yellow 2-SMD, No Lead
