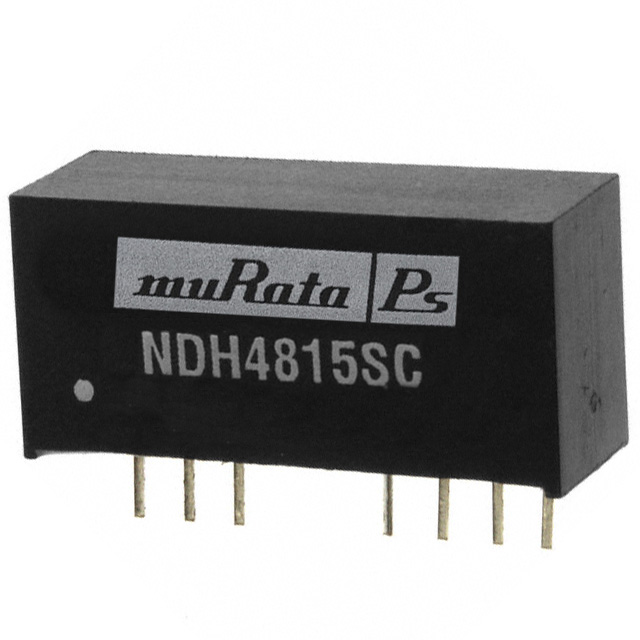

NDH4815SC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDH4815SC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NDH4815SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-SIP Module, 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [x] | 25.9 mm |
| Size / Dimension [y] | 0.36 in |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDH48 Series
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 36V - 72V Input
