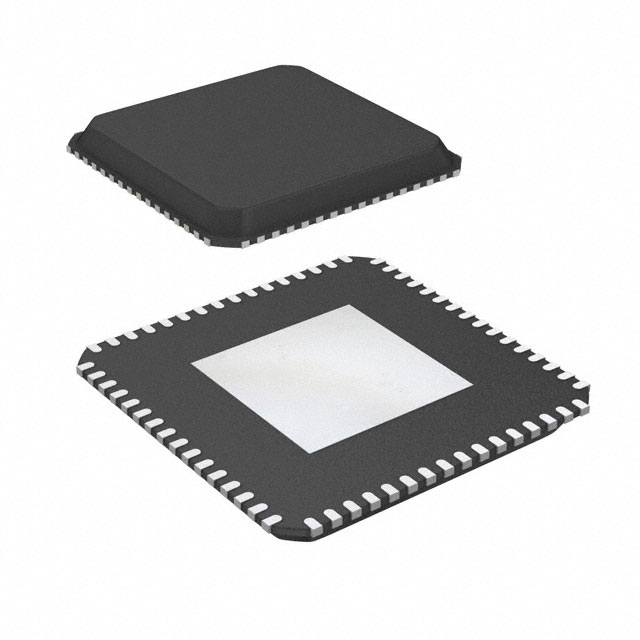

AK5558VN
ActiveAsahi Kasei Microdevices Corporation
IC ADC/AUDIO 32BIT 768K 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK5558VN
ActiveAsahi Kasei Microdevices Corporation
IC ADC/AUDIO 32BIT 768K 64QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK5558VN |
|---|---|
| Data Interface | DSD, PCM |
| Mounting Type | Surface Mount |
| Number of Channels | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-VFQFN Exposed Pad |
| Resolution (Bits) | 32 b |
| Sampling Rate (Per Second) | 768k |
| Supplier Device Package | 64-QFN (9x9) |
| Type | ADC, Audio |
| Voltage - Supply | 5 V |
| Voltage - Supply [Max] | 3.6 V, 1.98 V |
| Voltage - Supply [Min] | 3 V, 1.7 V |
| Voltage Supply Source | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.37 | |
| 10 | $ 11.36 | |||
| 25 | $ 10.89 | |||
| 100 | $ 9.60 | |||
| 250 | $ 9.13 | |||
| 500 | $ 8.54 | |||
| Digi-Reel® | 1 | $ 12.37 | ||
| 10 | $ 11.36 | |||
| 25 | $ 10.89 | |||
| 100 | $ 9.60 | |||
| 250 | $ 9.13 | |||
| 500 | $ 8.54 | |||
| Tape & Reel (TR) | 1000 | $ 7.83 | ||
Description
General part information
AK5558 Series
ADC, Audio 32 b 768k DSD, PCM 64-QFN (9x9)
