L115F21AH12VDCS1.5U

Active

CIT Relay and Switch

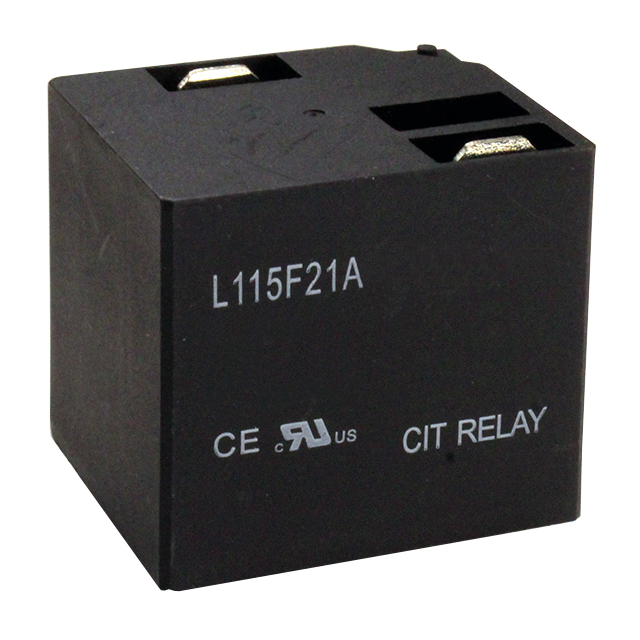

RELAY GEN PURPOSE SPST 50A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 50A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	L115F21AH12VDCS1.5U

Coil Current	125 mA
Coil Insulation	Class F
Coil Resistance	96 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	50 A
Load - Max Switching	5500 W, 13850 VA
Mounting Type	Through Hole
Must Operate Voltage	9.6 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	15 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 110 VDC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Mounting Type	Coil Resistance	Contact Form	Coil Current	Coil Type	Relay Type	Load - Max Switching	Release Time	Contact Rating (Current)	Must Operate Voltage	Contact Material	Coil Insulation	Seal Rating	Coil Voltage	Termination Style	Termination Style	Switching Voltage
CIT Relay and Switch L115F21CH24VDCS1.5U	-55 °C	125 °C	15 ms	Through Hole	384 Ohms	SPDT (1 Form C)	62.5 mA	Latching Single Coil	General Purpose	5500 W 13850 VA	15 ms	50 A	19.2 VDC	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	Sealed - Fully	24 VDC	PC Pin Quick Connect	0.25 in	110 VDC 277 VAC
CIT Relay and Switch L115F21AH12VDCS1.5U	-55 °C	125 °C	15 ms	Through Hole	96 Ohms	SPST-NO (1 Form A)	125 mA	Latching Single Coil	General Purpose	5500 W 13850 VA	15 ms	50 A	9.6 VDC	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	Sealed - Fully	12 VDC	PC Pin Quick Connect	0.25 in	110 VDC 277 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 4.03

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
