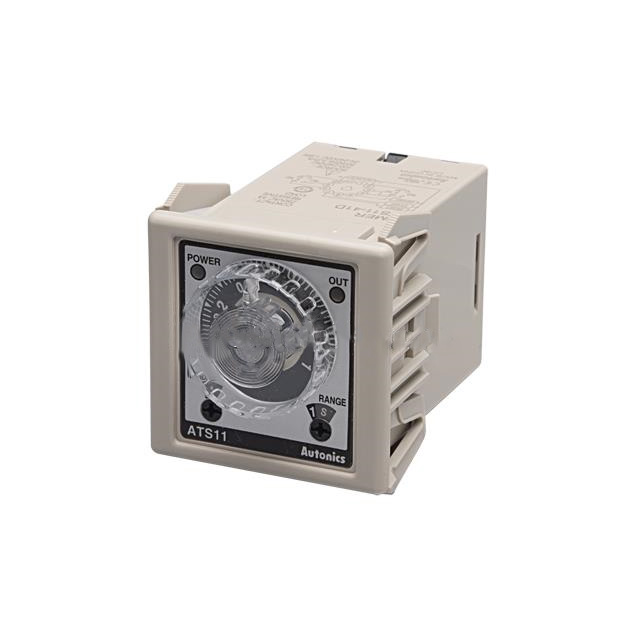

ATS11-21E

Active

AUTONICS

RELAY TIME DELAY 10HR 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 10HR 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	ATS11-21E

Contact Rating @ Voltage	250 VAC, 3 A
Delay Time [Max]	10 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial
Voltage - Supply	24 VAC

Part	Function	Timing Adjustment Method	Circuit	Voltage - Supply	Termination Style	Contact Rating @ Voltage	Delay Time [Min]	Delay Time [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
AUTONICS ATS11W-21	Repeat Cycle Twin Timer	Hand Dial	DPDT (2 Form C) SPDT (1 Form C)	24 VAC	Plug In 11 Pin (Octal)	3 A 250 VAC	0.1 Sec	10 Hrs
AUTONICS ATS11-41D	Programmable (Multi-Function)	Hand Dial	DPDT (2 Form C)		Plug In 11 Pin (Octal)	3 A 250 VAC	0.1 Sec	10 Hrs	240 VDC 240 VAC	24 V 100 VAC
AUTONICS ATS11W-11	Repeat Cycle Twin Timer	Hand Dial	DPDT (2 Form C) SPDT (1 Form C)	12 VDC	Plug In 11 Pin (Octal)	3 A 250 VAC	0.1 Sec	10 Hrs
AUTONICS ATS11W-41	Repeat Cycle Twin Timer	Hand Dial	DPDT (2 Form C) SPDT (1 Form C)		Plug In 11 Pin (Octal)	3 A 250 VAC	0.1 Sec	10 Hrs	240 VDC 240 VAC	24 V 100 VAC
AUTONICS ATS11W-13	Repeat Cycle Twin Timer	Hand Dial	DPDT (2 Form C) SPDT (1 Form C)	12 VDC	Plug In 11 Pin (Octal)	3 A 250 VAC	0.3 Sec	30 Hrs
AUTONICS ATS11-21E	Programmable (Multi-Function)	Hand Dial		24 VAC	Plug In 11 Pin (Octal)	3 A 250 VAC	0.1 Sec	10 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.00

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 10 Hrs Delay 3A @ 250VAC Panel Mount
