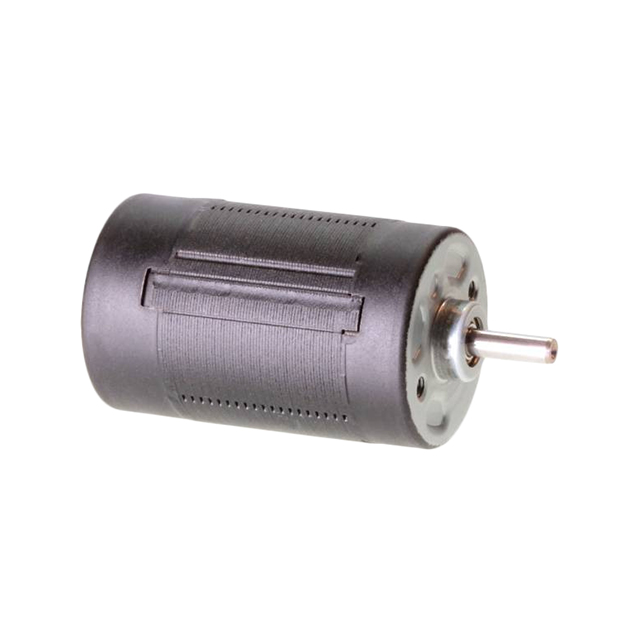

BLDC24P24A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 8400 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLDC24P24A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 8400 RPM 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLDC24P24A |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 12 mm |
| Length - Shaft and Bearing [x] | 0.472 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 20 W |
| RPM | 8400 RPM |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 3.68 oz-in |
| Torque - Rated (oz-in / mNm) | 26 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 0.177 lb |
| Weight | 80.29 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 134.33 | |
Description
General part information
BLDC24P24 Series
Brushless (BLDC) DC Motor Standard 8400 RPM 20W 24VDC
