WP56DK-S026VA1-R15000
ActiveJAE Electronics

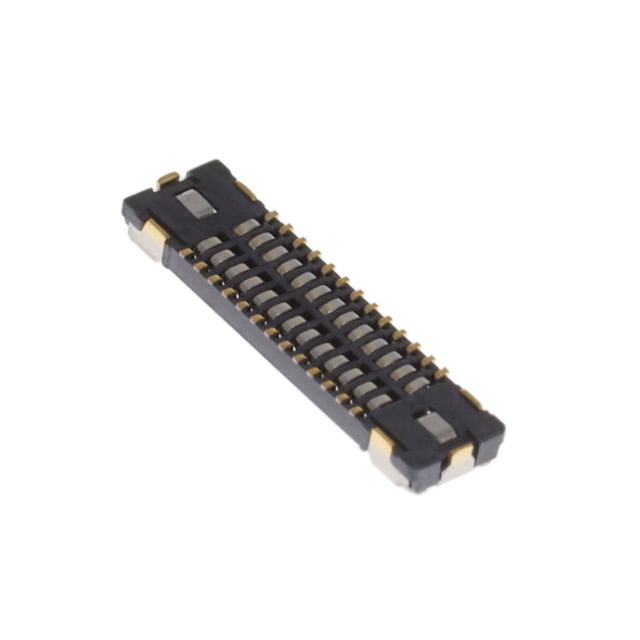

CONN RCPT 26 POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP56DK-S026VA1-R15000
ActiveJAE Electronics
CONN RCPT 26 POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP56DK-S026VA1-R15000 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.024 in |
| Height Above Board | 0.61 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.33 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.08 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.66 | |||
| Digi-Reel® | 1 | $ 1.33 | ||
| 10 | $ 1.12 | |||
| 25 | $ 1.08 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.66 | |||
| Tape & Reel (TR) | 15000 | $ 0.59 | ||
Description
General part information
WP56DK-S Series
26 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
