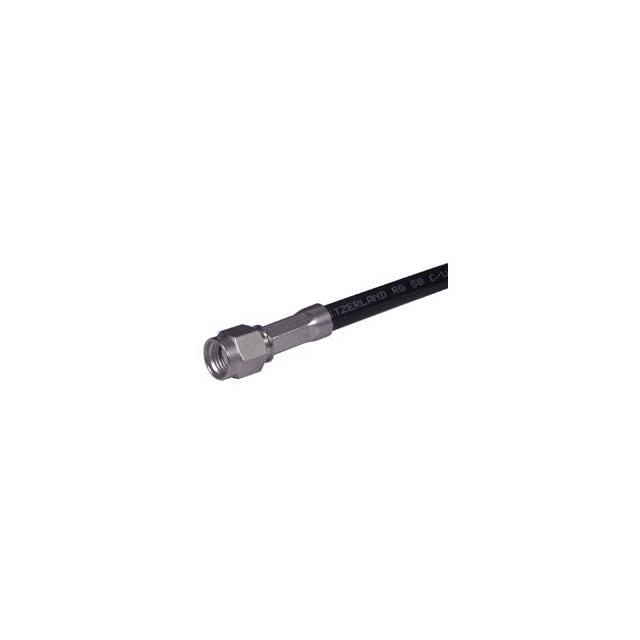

11_SMA-R50-3-48/133_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_SMA-R50-3-48/133_NE

Active

Huber+Suhner, Inc.

11_SMA-R50-3-48/133_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_SMA-R50-3-48/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

11_SMA-R50 Series

Part	Center Contact Plating	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Housing Color	Body Material	Frequency - Max [Max]	Center Contact Material	Body Finish	Shield Termination	Dielectric Material	Number of Ports	Connector Style	Contact Termination	Impedance	Mating Cycles
Huber+Suhner, Inc. 11_SMA-R50-2-113/133_NE	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	RD-316	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500
Huber+Suhner, Inc. 11_SMA-R50-3-238/133_NE	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	RG-400	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500
Huber+Suhner, Inc. 11_SMA-R50-3-238/133_NP	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	RG-400	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500
Huber+Suhner, Inc. 11_SMA-R50-2-113/133_NP	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	RD-316	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500
Huber+Suhner, Inc. 11_SMA-R50-3-48/133_NE	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	RG-58	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500
Huber+Suhner, Inc. 11_SMA-R50-4-97/133_NH	Gold	Female Socket Plug	Free Hanging (In-Line)	-65 ░C	165 °C	LMR-240	Silver	Brass	18 GHz	Beryllium Copper	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	RP-SMA	Solder	50 Ohms	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 14.12

Description

General part information

11_SMA-R50 Series

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
