US1MAFC_R1_00001

Unknown

Panjit International Inc.

DIODE STANDARD 1000V 1A SMAFC

Search across all available documentation for this part.

Unknown

Panjit International Inc.

DIODE STANDARD 1000V 1A SMAFC

Technical Specifications

Parameters and characteristics for this part

Specification	US1MAFC_R1_00001

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

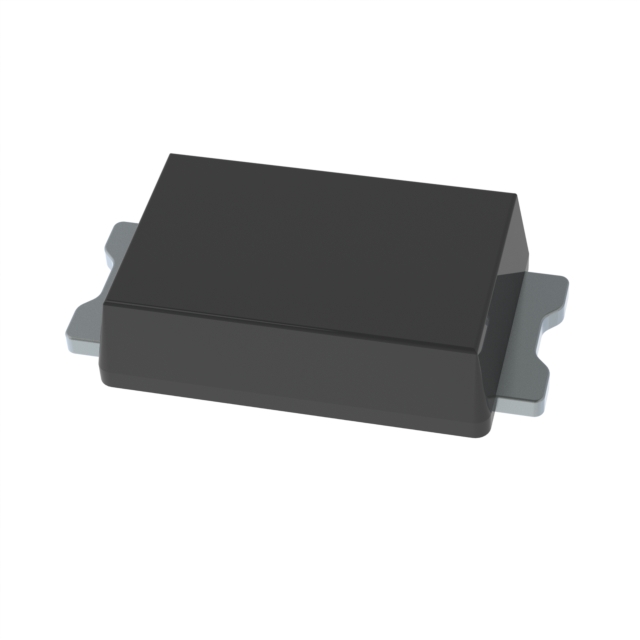

Package / Case	SMA Flat Leads, DO-221AC
Speed	200 mA, 500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Average Rectified (Io)	Capacitance @ Vr, F	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology
Panjit International Inc. US1M_R1_00001	DO-214AC (SMA)	150 °C	-55 °C	1 µA	1000 V	200 mA 500 ns	1 A	17 pF	DO-214AC SMA	1.7 V	Surface Mount	Standard
Panjit International Inc. US1MAFC_R1_00001		150 °C	-55 °C	1 µA	1000 V	200 mA 500 ns	1 A	10 pF	DO-221AC SMA Flat Leads	1.7 V	Surface Mount	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 1A Surface Mount SMAF-C
