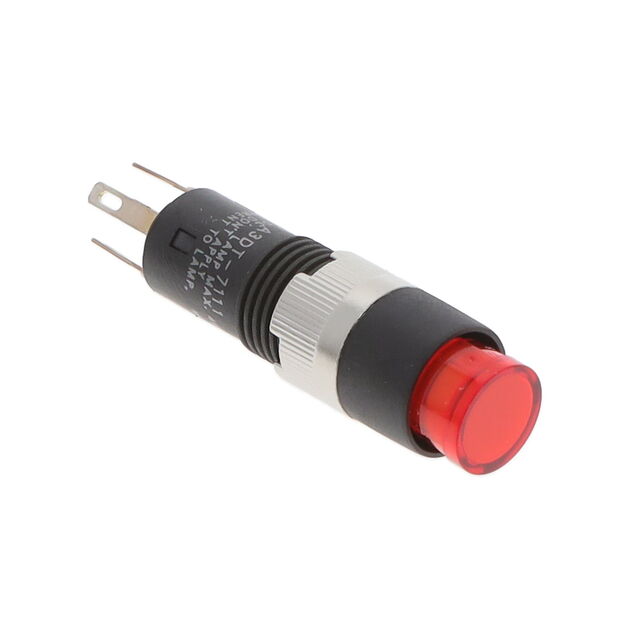

A3DT-90A1-00ER

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.1A 30V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	A3DT-90A1-00ER

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	100 mA
Electrical Life	100000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.7 VDC
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Requires	Termination Style	Contact Rating @ Voltage	Circuit	Color - Actuator/Cap	Ingress Protection	Type	Current Rating (Amps)	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Marking	Illumination Voltage (Nominal)	Electrical Life	Mechanical Life	Voltage Rating - DC	Switch Function	Mounting Type	Illumination Type, Color
Omron Electronics Inc-EMC Div A3DT-500GY	A3D	Omron	Pushbutton Round	8 mm	Illuminated - Green	Contact Block(s)
Omron Electronics Inc-EMC Div A3DT-7111	A3D	Omron				Switch Body	Solder Lug	0.1 A 30 VDC	SPST-NO
Omron Electronics Inc-EMC Div A3DT-90A1-00EG			Button Round	8 mm			Solder Lug		SPST-NO	Green	IP40	Illuminated Standard	100 mA	55 °C	-10 °C	No Marking	2.1 VDC	100000 Cycles	1000000 Cycles	30 V	Off-Mom	Panel Mount Front	Green LED
Omron Electronics Inc-EMC Div A3DT-500W	A3D	Omron	Pushbutton Round	8 mm	Illuminated - White	Contact Block(s)
Omron Electronics Inc-EMC Div A3DT-500Y	A3D	Omron	Pushbutton Round	8 mm	Illuminated - Yellow	Contact Block(s)
Omron Electronics Inc-EMC Div A3DT-7121	A3D	Omron				Switch Body	Solder Lug	0.1 A 30 VDC	SPST-NO
Omron Electronics Inc-EMC Div A3DT-500R	A3D	Omron	Pushbutton Round	8 mm		Contact Block(s)
Omron Electronics Inc-EMC Div A3DT-90A1-00ER			Button Round	8 mm			Solder Lug		SPST-NO	Red	IP40	Illuminated Standard	100 mA	55 °C	-10 °C	No Marking	1.7 VDC	100000 Cycles	1000000 Cycles	30 V	Off-Mom	Panel Mount Front	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
