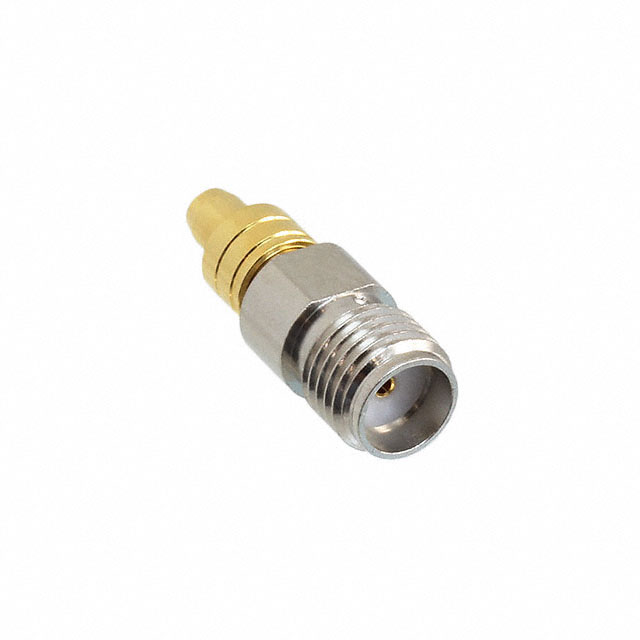

HRMJ-W.FL2P-ST3
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA JACK - W.FL2 PLUG
Deep-Dive with AI
Search across all available documentation for this part.
HRMJ-W.FL2P-ST3
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA JACK - W.FL2 PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRMJ-W.FL2P-ST3 |
|---|---|
| Adapter Series | SMA to W.FL2 |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel, Gold |
| Body Material | Brass, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, W.FL2 Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mating Cycles | 10000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 61.76 | |
Description
General part information
HRMJ-W.FL Series
Adapter Coaxial Connector SMA Jack, Female Socket To W.FL2 Plug, Female Socket 50 Ohms
