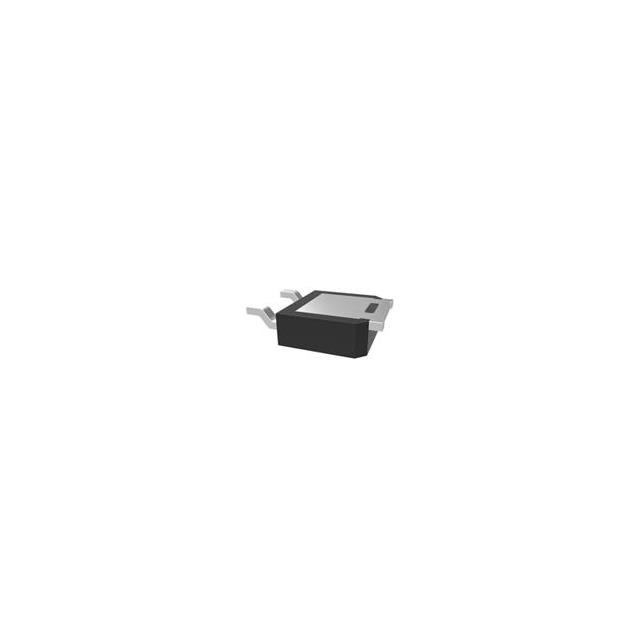

2SB1184-P-TP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	2SB1184-P-TP

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	82
Frequency - Transition	70 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	1 W
Supplier Device Package	DPAK
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Transistor Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]
Micro Commercial Components 2SB1184-P-TP	PNP	-55 °C	150 °C	50 V	3 A	DPAK	82	Surface Mount	70 MHz	1 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	1 W	1 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2500	$ 0.41

General part information

Bipolar (BJT) Transistor PNP 50 V 3 A 70MHz 1 W Surface Mount DPAK
