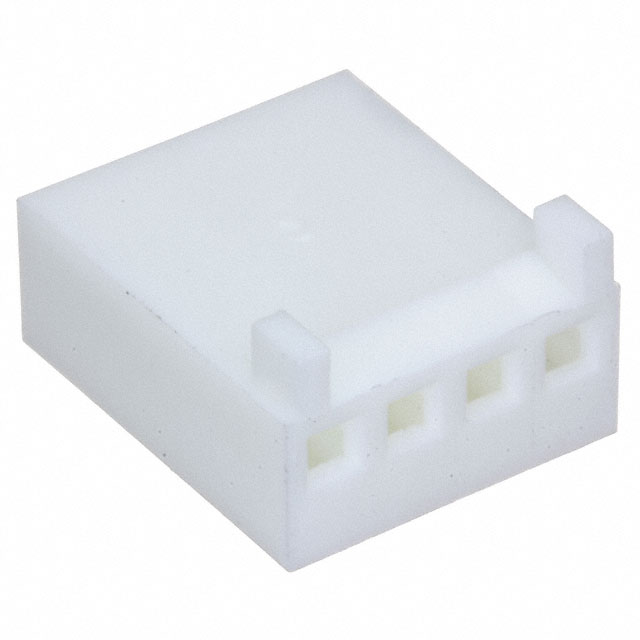

MTS-04

Active

Adam Tech

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Note	Mounting Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Contact Type	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions
Adam Tech MTS-09	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle	9
Adam Tech MTS-02	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle	2
Adam Tech MTS-10	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle	10
Adam Tech MTS-05	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle
Adam Tech MTS-12	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle	12
Adam Tech MTS-04	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	1	-25 °C	85 °C	Receptacle	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)

Technical documentation and resources
