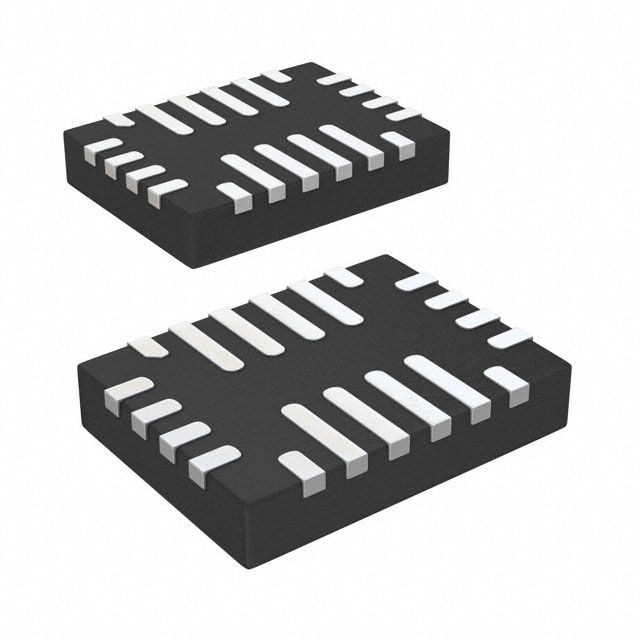

MP2617BGL-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BATT CHG LI-ION 1CELL 20QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP2617BGL-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BATT CHG LI-ION 1CELL 20QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP2617BGL-Z

Battery Chemistry	Lithium Ion
Battery Pack Voltage	4.2 V
Current - Charging	Constant - Programmable
Fault Protection	Over Temperature
Interface	USB
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	20-PowerTFQFN
Programmable Features	Timer
Supplier Device Package	20-QFN (3x4)
Voltage - Supply (Max) [Max]	10 V

MP2617 Series

Part	Package / Case	Programmable Features	Battery Chemistry	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Interface	Current - Charging	Voltage - Supply (Max) [Max]	Fault Protection	Supplier Device Package	Number of Cells	Battery Pack Voltage	Charge Current - Max [Max]
MONOLITHIC POWER SYSTEMS (MPS) MP2617BGL-P	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	10 V	Over Temperature	20-QFN (3x4)	1	4.2 V
MONOLITHIC POWER SYSTEMS (MPS) MP2617GL-P	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	14 V	Over Temperature	20-QFN (3x4)	1	4.2 V	3 A
MONOLITHIC POWER SYSTEMS (MPS) MP2617HGL-P	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	14 V	Over Temperature	20-QFN (3x4)	1	4.2 V	3 A
MONOLITHIC POWER SYSTEMS (MPS) MP2617AGL-P	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	10 V	Over Temperature	20-QFN (3x4)	1	4.35 V
MONOLITHIC POWER SYSTEMS (MPS) MP2617AGL-Z	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	10 V	Over Temperature	20-QFN (3x4)	1	4.35 V
MONOLITHIC POWER SYSTEMS (MPS) MP2617BGL-Z	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	10 V	Over Temperature	20-QFN (3x4)	1	4.2 V
MONOLITHIC POWER SYSTEMS (MPS) MP2617GL-Z	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	14 V	Over Temperature	20-QFN (3x4)	1	4.2 V	3 A
MONOLITHIC POWER SYSTEMS (MPS) MP2617HGL-Z	20-PowerTFQFN	Timer	Lithium Ion	-40 °C	125 ¯C	Surface Mount	USB	Constant - Programmable	14 V	Over Temperature	20-QFN (3x4)	1	4.2 V	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.73
		10	$ 2.45
		25	$ 2.32
		100	$ 2.01
		250	$ 1.91
		500	$ 1.71
		1000	$ 1.44
		2500	$ 1.37
	Digi-Reel®	1	$ 2.73
		10	$ 2.45
		25	$ 2.32
		100	$ 2.01
		250	$ 1.91
		500	$ 1.71
		1000	$ 1.44
		2500	$ 1.37
	Tape & Reel (TR)	5000	$ 1.32

Description

General part information

MP2617 Series

Charger IC Lithium Ion 20-QFN (3x4)
