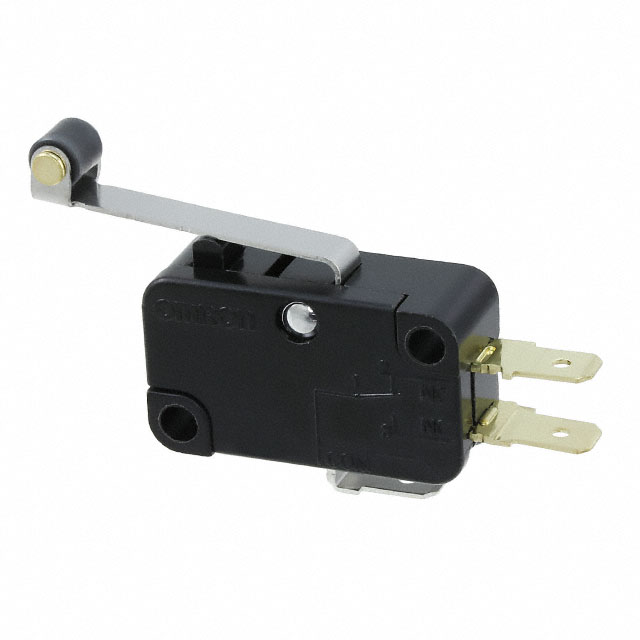

V-156-1C26

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Electrical Life	Ingress Protection	Pretravel	Pretravel	Switch Function	Mounting Type	Operating Force	Overtravel	Overtravel	Operating Position	Operating Position	Voltage Rating - AC	Mechanical Life	Current Rating (Amps)	Release Force	Circuit	Differential Travel	Differential Travel
Omron Electronics Inc-EMC Div V-156-1A5-T	Quick Connect Solder	0.187 in 4.7 mm	125 VDC	150 °C	-25 °C	Lever Roller	20000 Steps	IP40	4 mm	0.157 in	On-Mom	Chassis Mount	125 gf	1.6 mm	0.062 in	20.7 mm	0.815 in	250 V	50000000 Cycles	15 A 600 mA	14 gf	SPDT	1.5 mm	0.06 "
Omron Electronics Inc-EMC Div V-156-1C5-T	Quick Connect - 0.250" (6.3mm)		125 VDC	80 C	-25 °C	Lever Roller	100000 Cycles	IP40	4 mm	0.157 in	On-Mom	Chassis Mount	125 gf	1.6 mm	0.062 in	14.7 mm	0.579 in	250 V	50000000 Cycles	15 A 600 mA	14 gf	SPDT	1.5 mm	0.06 "
Omron Electronics Inc-EMC Div V-156-1C5	Quick Connect - 0.250" (6.3mm)		125 VDC	80 C	-25 °C	Lever Roller	100000 Cycles	IP40	4 mm	0.157 in	On-Mom	Chassis Mount	125 gf	1.6 mm	0.062 in	20.7 mm	0.815 in	250 V	50000000 Cycles	15 A 600 mA	14 gf	SPDT	1.5 mm	0.06 "
Omron Electronics Inc-EMC Div V-156-1C26	Quick Connect - 0.187" (4.7mm)		125 VDC	80 C	-25 °C	Lever Roller	100000 Cycles	IP40	4 mm	0.157 in	On-Mom	Chassis Mount	400 gf	1.6 mm	0.062 in	20.7 mm	0.815 in	250 V	50000000 Cycles	15 A 600 mA	25 gf	SPDT	1.5 mm	0.06 "
