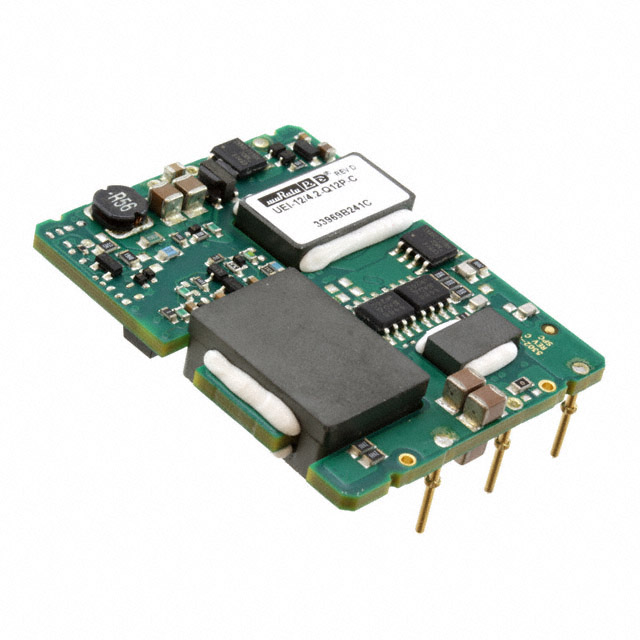

UEI-12/5-Q48N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 60W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Features	Applications	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. UEI-12/5-Q48N-C	Isolated Module	12 V	9.7 mm	38.1 mm	1.9 in	48.3 mm	0.38 in	1.5 in	5 A	9-DIP Module 6 Leads	60 W	OCP OTP OVP SCP UVLO	ITE (Commercial)	89.9 %	2250 VDC	75 V	85 °C	-40 °C	Through Hole	1	18 V
Murata Power Solutions Inc. UEI-12/4.2-Q12P-C	Isolated Module	12 V	9.7 mm	38.1 mm	1.9 in	48.3 mm	0.38 in	1.5 in	4.2 A	9-DIP Module 6 Leads	50 W	OCP OTP OVP SCP UVLO	ITE (Commercial)		2250 VDC	36 V	85 °C	-40 °C	Through Hole	1	9 V
Murata Power Solutions Inc. UEI-12/4.2-Q12N-C	Isolated Module	12 V	9.7 mm	38.1 mm	1.9 in	48.3 mm	0.38 in	1.5 in	4.2 A	9-DIP Module 6 Leads	50 W	OCP OTP OVP SCP UVLO	ITE (Commercial)		2250 VDC	36 V	85 °C	-40 °C	Through Hole	1	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 64.63

General part information

Isolated Module DC DC Converter 1 Output 12V 5A 18V - 75V Input
