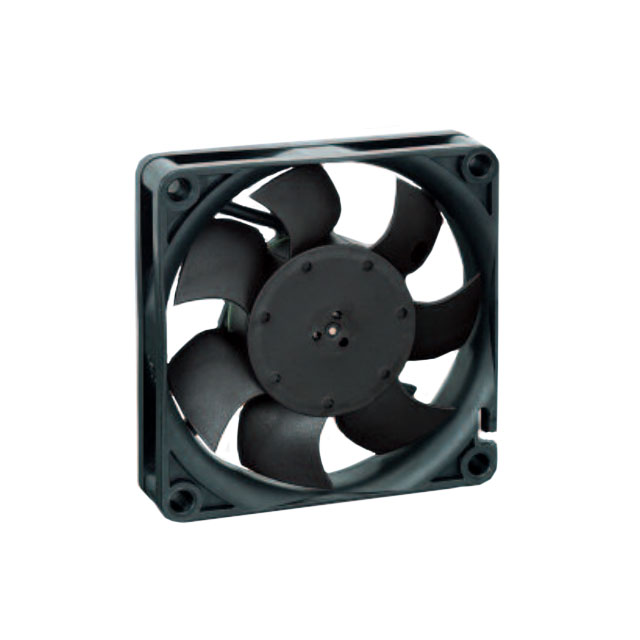

712F/2L-005
Activeebm-papst Inc.
FAN AXIAL 70X15MM 12VDC RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
712F/2L-005
Activeebm-papst Inc.
FAN AXIAL 70X15MM 12VDC RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 712F/2L-005 |
|---|---|
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 25 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 600 mW |
| RPM | 3300 RPM |
| Size / Dimension [x] | 70 mm |
| Size / Dimension [y] | 70 mm |
| Termination | 3 Position Rectangular Connector |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 8 VDC |
| Width [x] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.60 | |
| 10 | $ 31.60 | |||
| 25 | $ 30.40 | |||
| 50 | $ 28.40 | |||
| 100 | $ 26.20 | |||
| 250 | $ 25.80 | |||
Description
General part information
712F Series
Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Sintec 16.5 CFM (0.462m³/min) 3 Position Rectangular Connector
