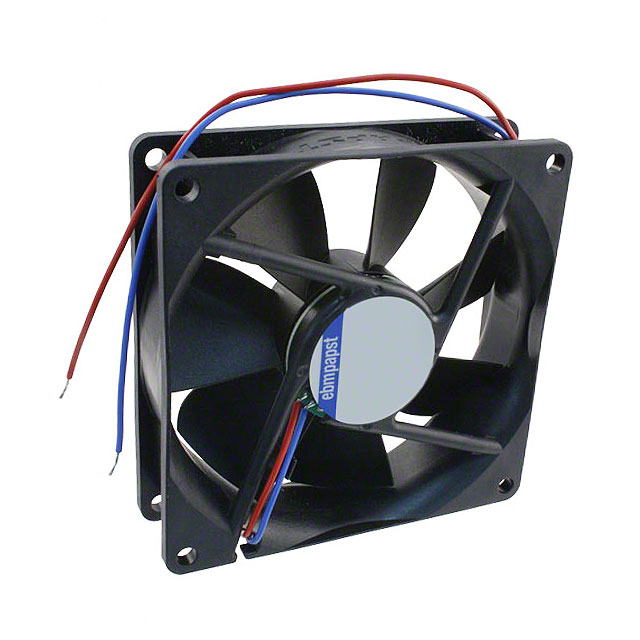

3414NG

Active

ebm-papst Inc.

FAN AXIAL 92X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTubeaxial Fan Accessories - Quick Reference Datasheet +1

3414NG

Active

ebm-papst Inc.

FAN AXIAL 92X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsTubeaxial Fan Accessories - Quick Reference Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3414NG

Air Flow	49.4 CFM
Air Flow	1.38 m³/min
Approval Agency	UL, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	32 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2.3 W
RPM	2700 RPM
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	99.79 g
Weight	0.22 lb
Width [y]	25.4 mm

3414N Series

Part	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	RPM	Material - Frame	Noise	Approval Agency	Weight	Weight	Width [y]	Termination	Material - Blade	Fan Type	Air Flow	Air Flow	Bearing Type	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features
ebm-papst Inc. 3414NL	18 VDC	28 VDC	1.4 W	1950 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	23 dB(A)	CSA UL VDE	99.79 g	0.22 lb	25.4 mm	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	35.9 CFM	1.01 m³/min	Ball	80000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 3414NGL	18 VDC	28 VDC	1.4 W	1950 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	23 dB(A)	CSA UL VDE	99.79 g	0.22 lb	25.4 mm	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	35.9 CFM	1.01 m³/min	Sintec	80000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 3414NMU-603	18 VDC	28 VDC	1.4 W	2300 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	28 dB	UL	99.79 g	0.22 lb	25.4 mm	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial			Ball		24 VDC	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight Waterproof
ebm-papst Inc. 3414N/2GH	18 VDC	26 VDC	3 W	3000 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	39 dB(A)				25.4 mm	3 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	55.4 CFM	1.55 m³/min	Sintec	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C		Speed Sensor (Tach)
ebm-papst Inc. 3414NG	18 VDC	28 VDC	2.3 W	2700 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	32 dB	CSA UL VDE	99.79 g	0.22 lb	25.4 mm	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	49.4 CFM	1.38 m³/min	Sintec	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 3414NGHH	18 VDC	26 VDC	3.2 W	3250 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	39 dB(A)	CSA UL VDE	99.79 g	0.22 lb	25.4 mm	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	60 CFM	1.68 mł/min	Sintec	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.75
		10	$ 25.35
		25	$ 24.39
		50	$ 22.78
		100	$ 21.02
		250	$ 20.70

Description

General part information

3414N Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Sintec 49.4 CFM (1.38mł/min) 2 Wire Leads
