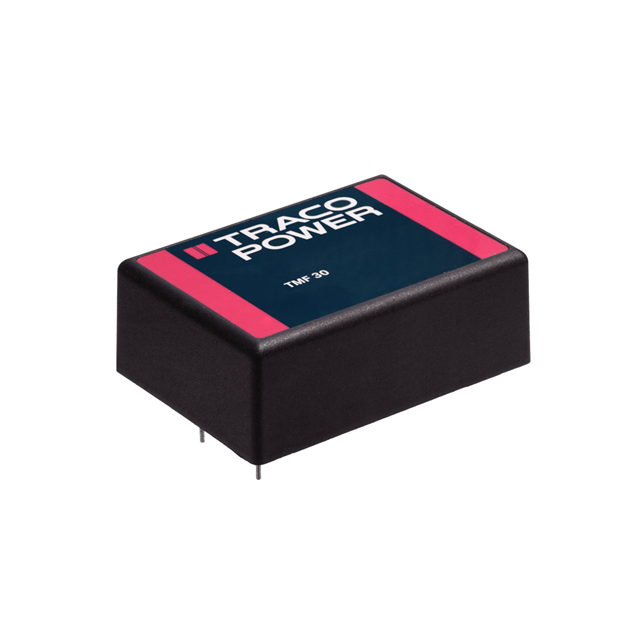

TMF 30115
ActiveTraco Power
AC/DC CONVERTER 15V 30W
Deep-Dive with AI
Search across all available documentation for this part.
TMF 30115
ActiveTraco Power
AC/DC CONVERTER 15V 30W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMF 30115 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 86 % |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 64.1 mm |
| Size / Dimension [x] | 2.52 in |
| Size / Dimension [y] | 1.8 in |
| Size / Dimension [y] | 45.6 mm |
| Size / Dimension [z] | 23.5 mm |
| Size / Dimension [z] | 0.93 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 57.70 | |
| 10 | $ 50.02 | |||
| 25 | $ 48.35 | |||
| 50 | $ 47.12 | |||
| 100 | $ 45.93 | |||
| 250 | $ 39.70 | |||
Description
General part information
TMF 30 Series
Enclosed AC DC Converters 1 Output 15V 2A 90 ~ 264 VAC, 120 ~ 370 VDC Input
Documents
Technical documentation and resources
No documents available
