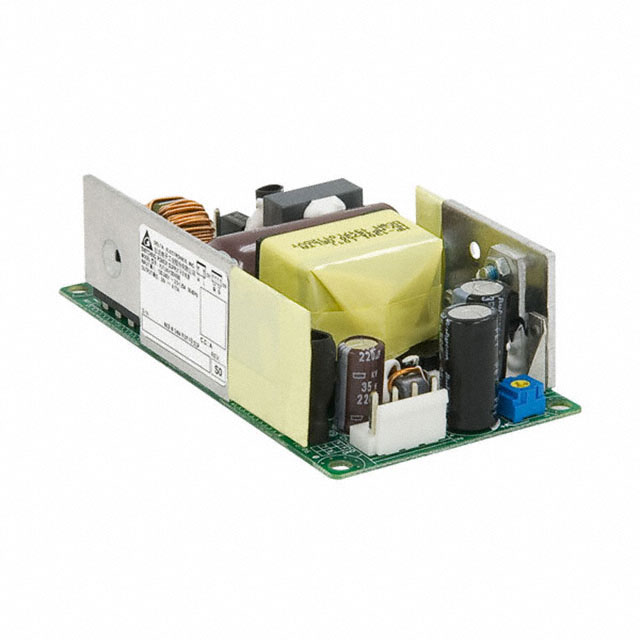

PJT-24V100WBBA

Active

Delta Electronics

AC/DC CONVERTER 24V 80W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 24V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	PJT-24V100WBBA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	3.33 A
Efficiency	89 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W, 80 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Type	Efficiency	Number of Outputs	Approval Agency	Power (Watts)	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features
Delta Electronics PJT-24V100WBBA	24 V	Open Frame	89 %	1	CB CE cURus TUV	80 W 100 W	3000 V	90 VAC	264 VAC	3.33 A	ITE (Commercial)	Chassis Mount	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	-10 °C	70 °C	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
