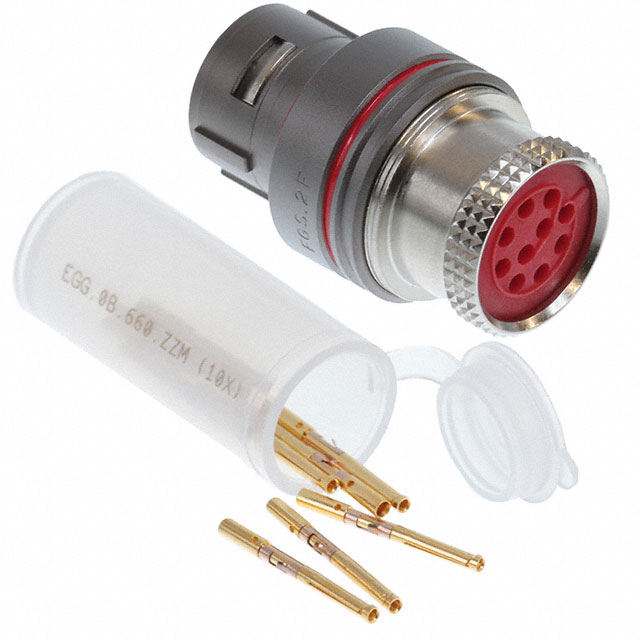

FGS.2F.310.XLM

Active

LEMO

CONN PLUG FMALE 10POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGS.2F.310.XLM

Active

LEMO

CONN PLUG FMALE 10POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGS.2F.310.XLM

Applications	Aerospace
Cable Opening [custom]	14 mm
Cable Opening [custom]	0.551 in
Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	310
Shielding	Shielded
Termination	Crimp

FGS.2F Series

Part	Color	Shell Finish	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Orientation	Primary Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Shell Material	Shielding	Insert Material	Number of Positions	Material Flammability Rating	Termination	Connector Type	Contact Material	Current Rating (Amps)
LEMO FGS.2F.308.XLM	Gray	Nickel	308	200 °C	-15 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Aluminum Alloy	Shielded	Polyetheretherketone (PEEK)	8	UL94 V-0	Crimp	Female Sockets Plug	Bronze	10 A
LEMO FGS.2F.312.XLM	Gray	Nickel	312	200 °C	-15 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Aluminum Alloy	Shielded	Polyetheretherketone (PEEK)	12	UL94 V-0	Crimp	Female Sockets Plug	Bronze	7 A
LEMO FGS.2F.319.CLM	Silver	Chrome	319	200 °C	-55 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Brass	Shielded	Polyetheretherketone (PEEK)	19	UL94 V-0	Crimp	Female Sockets Plug	Bronze	5 A
LEMO FGS.2F.319.XLMS	Gray	Nickel	319	200 °C	-15 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Aluminum Alloy	Shielded	Polyetheretherketone (PEEK)	19	UL94 V-0	Crimp	Female Sockets Plug	Bronze	5 A
LEMO FGS.2F.310.XLM	Gray	Nickel	310	200 °C	-15 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Aluminum Alloy	Shielded	Polyetheretherketone (PEEK)	10	UL94 V-0	Crimp	Female Sockets Plug	Bronze	8 A
LEMO FGS.2F.312.CLM	Silver	Chrome	312	200 °C	-55 °C	Aerospace	S	Metal	IP67 - Dust Tight Waterproof	14 mm	0.551 in	Push-Pull	59 Áin	1.5 Ám	Free Hanging (In-Line)	Gold	Brass	Shielded	Polyetheretherketone (PEEK)	12	UL94 V-0	Crimp	Female Sockets Plug	Bronze	7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 116.17
		10	$ 98.75
		25	$ 92.57
		50	$ 88.16
		100	$ 85.76

Description

General part information

FGS.2F Series

10 Position Circular Connector Plug, Female Sockets Crimp
