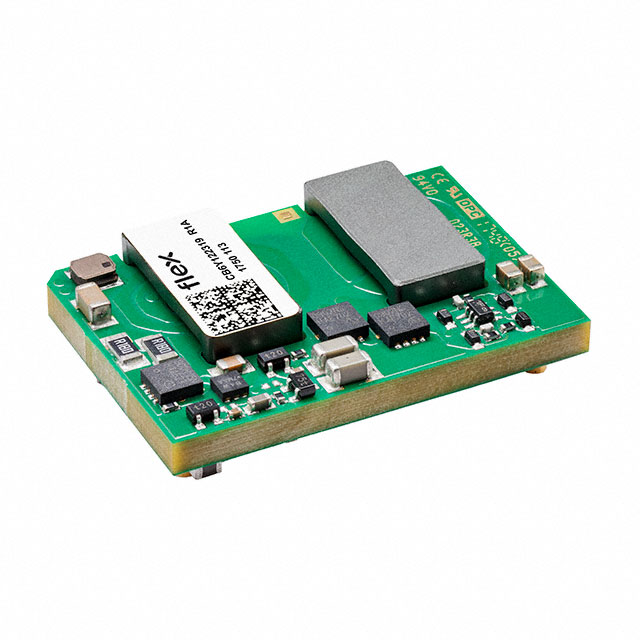

PKU4611ASI

Active

Flex Power Modules

DC DC CONVERTER 5V 60W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 5V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4611ASI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	12 A
Efficiency	94 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	60 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	8.4 mm
Size / Dimension [z]	0.33 in
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Approval Agency	Number of Outputs	Control Features	Efficiency	Standard Number	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Features	Voltage - Output 1	Power (Watts)
Flex Power Modules PKU4610ESI	20 A	36 V	Isolated Module	ITE (Commercial)	75 V	-40 °C	105 C	Sixteenth Brick	Sixteenth Brick	CB CSA IEC TUV UL	1	Active Low Enable	92.3 %	62368-1	2250 VDC	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.9 mm	Surface Mount	Adjustable Output Remote On/Off	3.3 V
Flex Power Modules PKU4619PI	25 A	36 V	Isolated Module	ITE (Commercial)	75 V	-40 °C	120 °C	Sixteenth Brick	Sixteenth Brick	CB CSA IEC TUV UL	1	Active Low Enable	90.3 %	62368-1	1.5 kV	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.8 mm	Through Hole	Adjustable Output Remote On/Off Remote Sense	2.5 V	63 W
Flex Power Modules PKU4611ASIP	12 A	36 V	Isolated Module	ITE (Commercial)	60 V	-40 °C	125 °C	Sixteenth Brick	Sixteenth Brick	CB CSA IEC TUV UL	1	Active High Enable	94 %	62368-1	2250 VDC	22.9 mm	0.9 "	33 mm	1.3 "	0.33 in	8.4 mm	Surface Mount	Adjustable Output Remote On/Off	5 V	60 W
Flex Power Modules PKU4611ASI	12 A	36 V	Isolated Module	ITE (Commercial)	60 V	-40 °C	125 °C	Sixteenth Brick	Sixteenth Brick	CB CSA IEC TUV UL	1	Active Low Enable	94 %	62368-1	2250 VDC	22.9 mm	0.9 "	33 mm	1.3 "	0.33 in	8.4 mm	Surface Mount	Adjustable Output Remote On/Off	5 V	60 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 12A 36V - 60V Input
