M2032SS1G01
ObsoleteNKK Switches

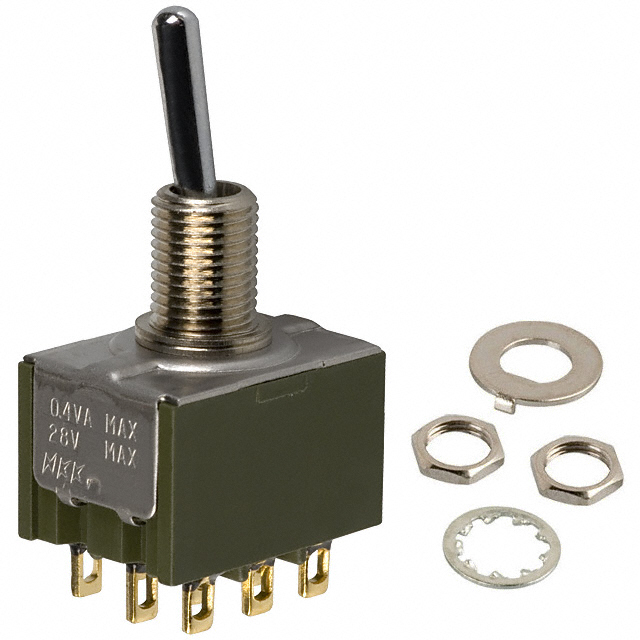

SWITCH TOGGLE 3PDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2032SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE 3PDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2032SS1G01 |
|---|---|
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | 3PDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
M2032SS Series
| Part | Current Rating (Amps) | Actuator Type | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Voltage Rating - AC | Bushing Thread | Features | Termination Style | Circuit | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Electrical Life | Actuator Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | Unthreaded | Epoxy Sealed Terminals | PC Pin | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | Through Hole Right Angle |
NKK Switches | 0.4 VA | Standard Round | 6.5 mm | 28 V | 28 V | 1/4-40 | Epoxy Sealed Terminals | PC Pin | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 50000 Cycles | Brass Chrome Plated | |
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | 1/4-40 | Epoxy Sealed Terminals | PC Pin | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | 1/4-40 | Epoxy Sealed Terminals | PC Pin | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | 1/4-40 | Epoxy Sealed Terminals | Solder Lug | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 0.4 VA | Standard Round | 6.5 mm | 28 V | 28 V | M6 x 0.75 | Epoxy Sealed Terminals | Solder Lug | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | M6 x 0.75 | Epoxy Sealed Terminals | PC Pin | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 4 A 6 A | Standard Round | 6.5 mm | 30 V | 125 V | M6 x 0.75 | Epoxy Sealed Terminals | Wire Wrap | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 25000 Steps | Brass Chrome Plated | |
NKK Switches | 0.4 VA | Standard Round | 6.5 mm | 28 V | 28 V | 1/4-40 | Epoxy Sealed Terminals | Solder Lug | 3PDT | On-On | -30 ░C | 85 °C | Non-Illuminated | 50000 Cycles | Brass Chrome Plated |
