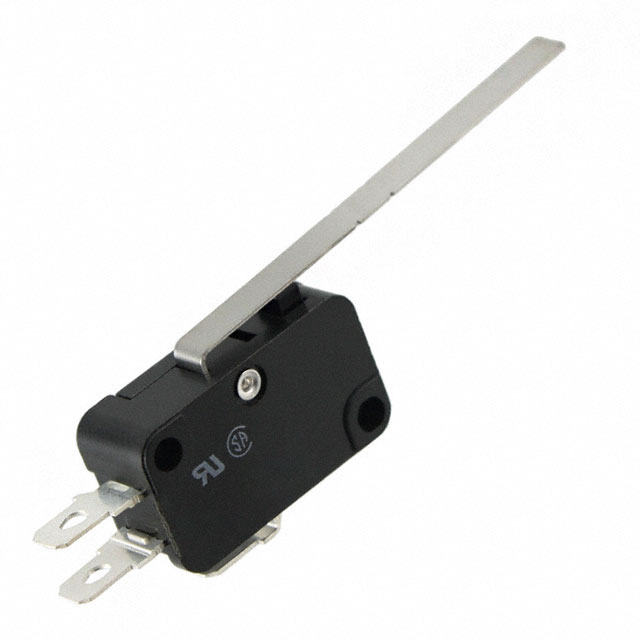

V-103-1A5

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Switch Function	Differential Travel	Differential Travel	Termination Style	Termination Style	Operating Force	Circuit	Operating Position	Operating Position	Electrical Life	Pretravel	Pretravel	Mechanical Life	Actuator Type	Voltage Rating - DC	Voltage Rating - AC	Release Force
Omron Electronics Inc-EMC Div V-103-1A4-T	0.125 in	3.2 mm	150 °C	-25 °C	Chassis Mount	IP40	On-Mom	2.8 mm	0.11 in	Quick Connect Solder	0.187 in 4.7 mm	35 gf	SPDT	0.6 in	15.2 mm	50000 Cycles	0.354 in	9 mm	50000000 Cycles	Lever Straight	125 VDC	250 V
Omron Electronics Inc-EMC Div V-103-1A4	0.125 in	3.2 mm	80 C	-25 °C	Chassis Mount	IP40	On-Mom	2.8 mm	0.11 in	Quick Connect Solder	0.187 in 4.7 mm	35 gf	SPDT	0.6 in	15.2 mm	300000 Cycles	0.354 in	9 mm	50000000 Cycles	Lever Straight	125 VDC	250 V
Omron Electronics Inc-EMC Div V-103-1C4	0.125 in	3.2 mm	80 C	-25 °C	Chassis Mount	IP40	On-Mom	2.8 mm	0.11 in	Quick Connect - 0.250" (6.3mm)		35 gf	SPDT	0.6 in	15.2 mm	300000 Cycles	0.354 in	9 mm	50000000 Cycles	Lever Straight	125 VDC	250 V
Omron Electronics Inc-EMC Div V-103-1A5	0.079 in	2 mm	80 C	-25 °C	Chassis Mount	IP40	On-Mom	2.8 mm	0.11 in	Quick Connect Solder	0.187 in 4.7 mm	70 gf	SPDT	0.6 in	15.2 mm	300000 Cycles	0.354 in	9 mm	50000000 Cycles	Lever Straight	125 VDC	250 V	6.118 gf
