R1A100550R0J5C0
ObsoleteTTM Technologies, Inc.
RES SMD 50 OHM 5% 1/2W 1005
Deep-Dive with AI
Search across all available documentation for this part.
R1A100550R0J5C0
ObsoleteTTM Technologies, Inc.
RES SMD 50 OHM 5% 1/2W 1005
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1A100550R0J5C0 |
|---|---|
| Composition | Thick Film |
| Features | RF, High Frequency |
| Height - Seated (Max) [Max] [z] | 0.31 mm |
| Height - Seated (Max) [Max] [z] | 0.012 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

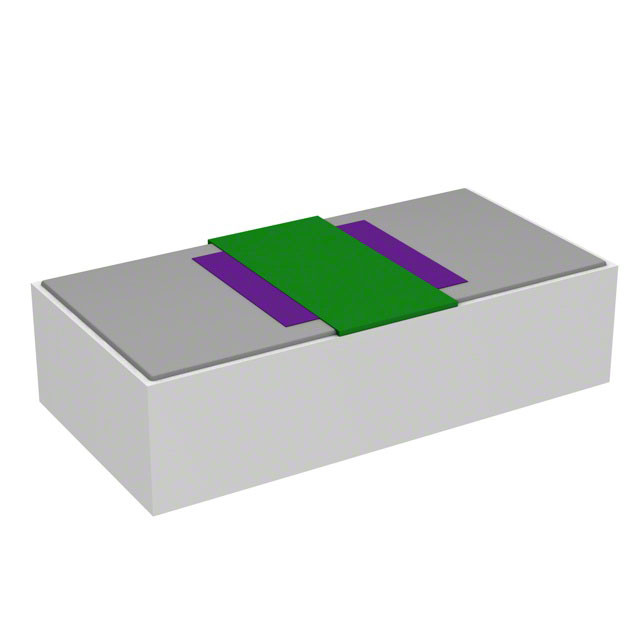

| Package / Case | 0402 (1005 Metric) |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 50 Ohms |
| Size / Dimension [x] | 0.04 " |
| Size / Dimension [x] | 1.02 mm |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.51 mm |
| Supplier Device Package | 1005 |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
R1A100550 Series
50 Ohms ±5% 0.5W, 1/2W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thick Film
Documents
Technical documentation and resources
No documents available
