AZSR250-2AE-24D
ActiveAmerican Zettler

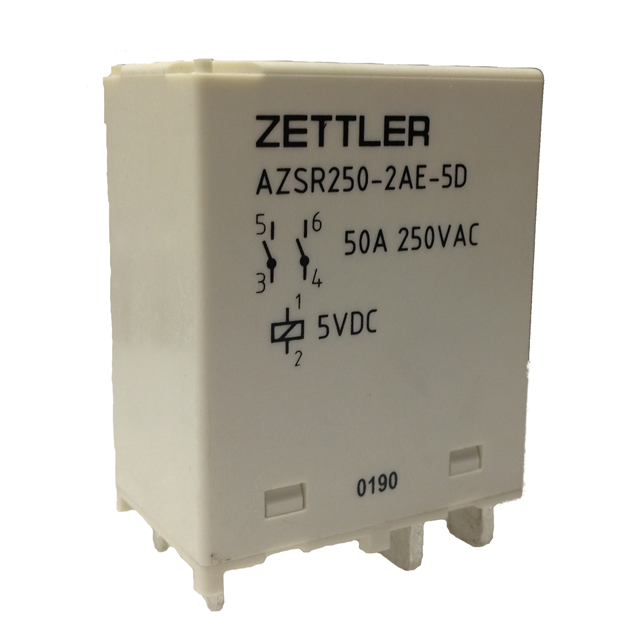

RELAY EV CHG SOLAR DPST 55A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZSR250-2AE-24D
ActiveAmerican Zettler
RELAY EV CHG SOLAR DPST 55A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZSR250-2AE-24D |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 20 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 55 A |
| Load - Max Switching | 1500 W, 13850 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging, Solar |
| Release Time | 5 ms |
| Switching Voltage | 150 VDC, 440 VAC |
| Termination Style | PC Pin |
