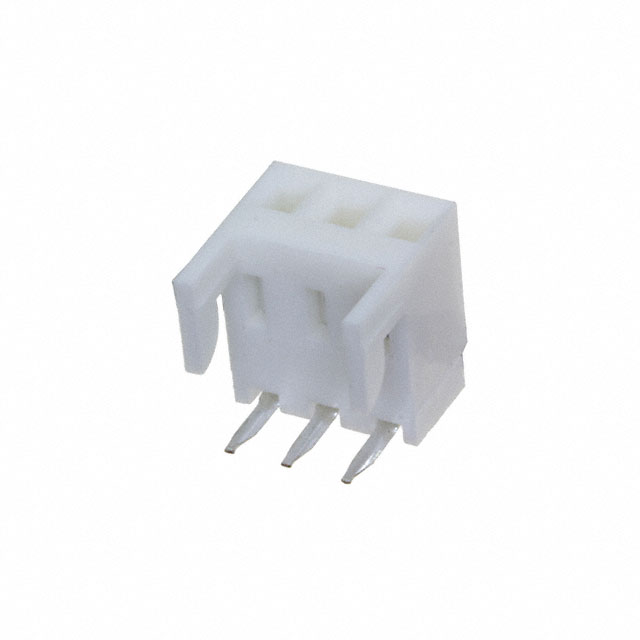

PCE-B-03

Active

Adam Tech

RECEPTICAL WITH HOOKS 3P 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCE-B-03

Active

Adam Tech

RECEPTICAL WITH HOOKS 3P 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCE-B-03

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

PCE-B Series

Part	Applications	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Contact Material	Features	Contact Type	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Voltage Rating	Number of Rows	Insulation Height	Insulation Height	Style	Fastening Type	Termination	Mounting Type
Adam Tech PCE-B-08	Automotive General Purpose Medical Telecommunications	Square	Receptacle	0.1 in	2.54 mm	2.5 A	White	Phosphor Bronze	Board Hooks	Non-Gendered	75 ░C	UL94 V-0	8	All	Tin	3.35 mm	0.132 in	Nylon Polyamide (PA)	250 VAC	1	0.185 in	4.7 mm	Board to Board Cable	Push-Pull	Solder	Board Edge Right Angle Through Hole
Adam Tech PCE-B-06	Automotive General Purpose Medical Telecommunications	Square	Receptacle	0.1 in	2.54 mm	2.5 A	White	Phosphor Bronze	Board Hooks	Non-Gendered	75 ░C	UL94 V-0	6	All	Tin	3.35 mm	0.132 in	Nylon Polyamide (PA)	250 VAC	1	0.185 in	4.7 mm	Board to Board Cable	Push-Pull	Solder	Board Edge Right Angle Through Hole
Adam Tech PCE-B-02	Automotive General Purpose Medical Telecommunications	Square	Receptacle	0.1 in	2.54 mm	2.5 A	White	Phosphor Bronze	Board Hooks	Non-Gendered	75 ░C	UL94 V-0	2	All	Tin	3.35 mm	0.132 in	Nylon Polyamide (PA)	250 VAC	1	0.185 in	4.7 mm	Board to Board Cable	Push-Pull	Solder	Board Edge Right Angle Through Hole
Adam Tech PCE-B-03	Automotive General Purpose Medical Telecommunications	Square	Receptacle	0.1 in	2.54 mm	2.5 A	White	Phosphor Bronze	Board Hooks	Non-Gendered	75 ░C	UL94 V-0		All	Tin	3.35 mm	0.132 in	Nylon Polyamide (PA)	250 VAC	1	0.185 in	4.7 mm	Board to Board Cable	Push-Pull	Solder	Board Edge Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.60

Description

General part information

PCE-B Series

3 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin
