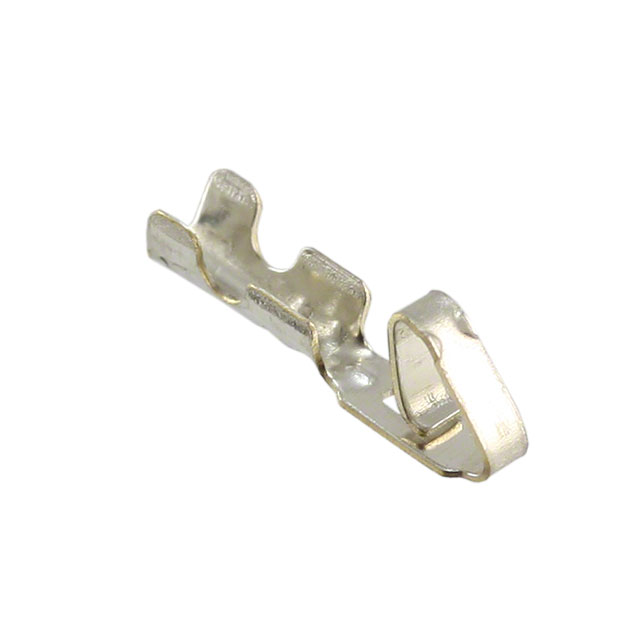

SWT25X-URTC-S01-UU-UU
ActiveSullins Connector Solutions
CONN SOCKET 20-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWT25X-URTC-S01-UU-UU |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 1.02 Ám |
| Contact Finish Thickness | 40 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 25 | $ 0.05 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 10000 | $ 0.02 | ||
| 20000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
Description
General part information
SWT25X Series
Socket Contact Tin 20-26 AWG Crimp
