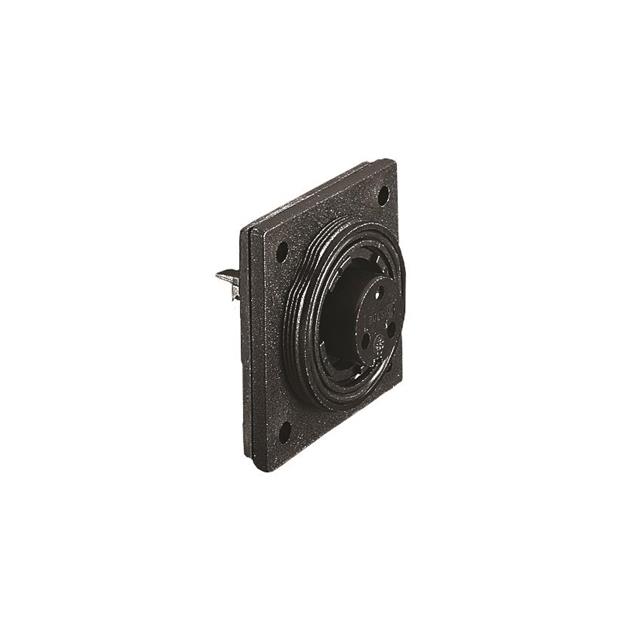

PX0766/P

Active

BULGIN LIMITED

CONN RCPT MALE 4POS NICKEL SCREW

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT MALE 4POS NICKEL SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PX0766/P

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Material	Contact Material	Material Flammability Rating	Number of Positions	Color	Connector Type	Shielding	Orientation	Contact Finish - Mating	Mounting Feature	Voltage Rating	Current Rating (Amps)	Termination	Insert Material
BULGIN LIMITED PX0766/S	IP68 IP69K	-20 C	70 °C	Plastic	Glass Filled Nylon Polyamide (PA)	Brass	UL94 HB	4	Black	Receptacle Female Sockets	Unshielded	Keyed	Nickel	Flange	277 VAC/DC	10 A	Screw	Nylon Polyamide (PA)
BULGIN LIMITED PX0766/P	IP68 IP69K	-20 C	70 °C	Plastic	Glass Filled Nylon Polyamide (PA)	Brass	UL94 HB	4	Black	Male Pins Receptacle	Unshielded	Keyed	Nickel	Flange	277 VAC/DC	10 A	Screw	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Receptacle, Male Pins Screw
