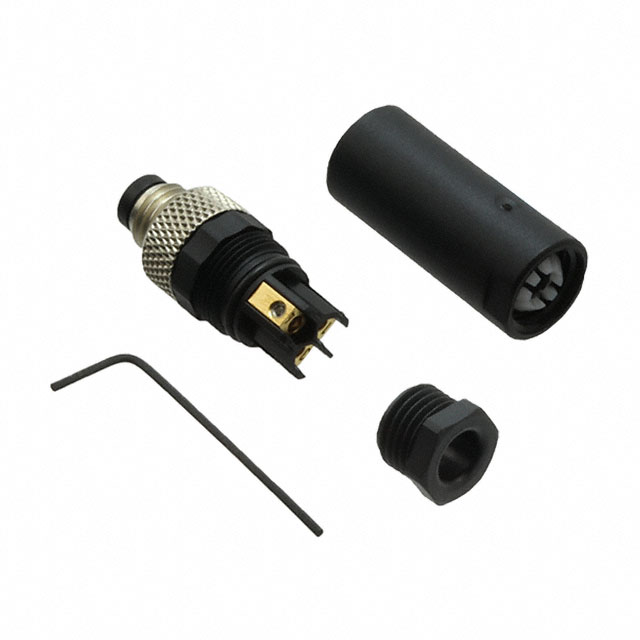

214HR NC032
ObsoleteALPHA WIRE
CONN PLUG MALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
214HR NC032
ObsoleteALPHA WIRE
CONN PLUG MALE 3POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 214HR NC032 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyurethane (PUR) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M8-3 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
214HR Series
3 Position Circular Connector Plug, Male Pins Screw
Documents
Technical documentation and resources
