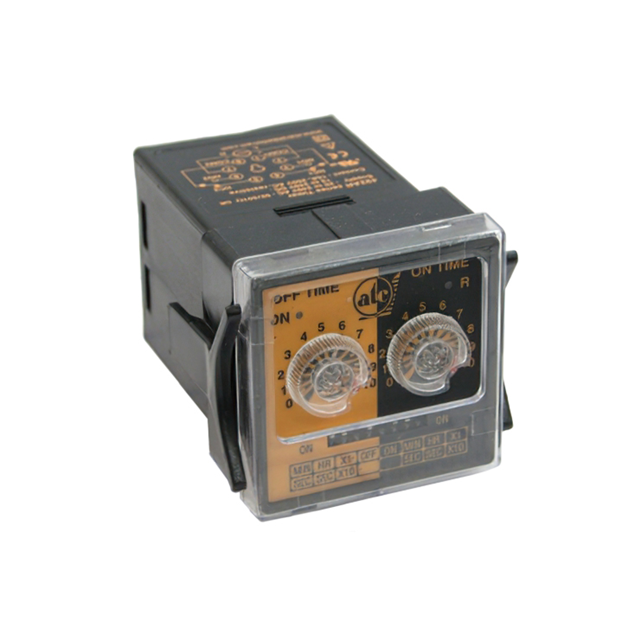

422AR-100-S-0-X
ActiveATC
RELAY TIME DELAY 10HR 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
422AR-100-S-0-X
ActiveATC
RELAY TIME DELAY 10HR 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 422AR-100-S-0-X |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 10 A |
| Delay Time [Max] | 10 Hrs |
| Delay Time [Min] | 1 Sec |
| Function | Repeat Cycle |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC, 240 VDC |
| Voltage - Supply [Min] | 12 V, 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.85 | |
| 10 | $ 83.52 | |||
| 25 | $ 79.08 | |||
| 50 | $ 75.52 | |||
Description
General part information
422AR Series
Repeat Cycle Time Delay Relay DPDT (2 Form C) 1 Sec ~ 10 Hrs Delay 10A @ 250VAC Socketable
Documents
Technical documentation and resources
No documents available
