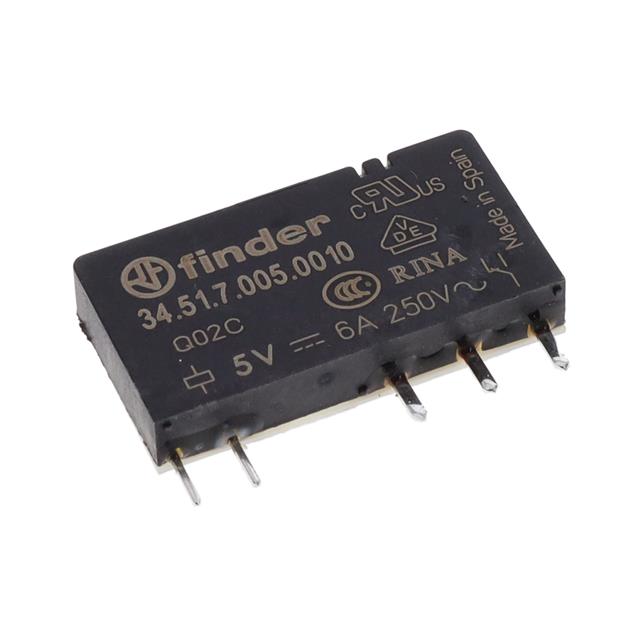

34.51.7.005.0010

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 6A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34.51.7.005.0010

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 6A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34.51.7.005.0010

Approval Agency	CCC, VDE, RINA, cURus
Coil Current	38.4 mA
Coil Resistance	130 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Load - Max Switching [Max]	2400 VA
Mounting Type	Through Hole
Must Operate Voltage	3.5 VDC
Operate Time	5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

34.51.7 Series

Part	Coil Resistance	Seal Rating	Contact Material	Must Operate Voltage	Approval Agency	Switching Voltage [Max]	Coil Current	Operate Time	Coil Type	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Rating (Current)	Contact Form	Load - Max Switching [Max]	Relay Type	Coil Voltage	Mounting Type
Finder Relays, Inc. 34.51.7.060.5310	19.7 kOhms	Sealed - Flux Protection	Gold (Au) Silver Nickel (AgNi)	42 VDC	CCC cURus RINA VDE	400 VAC	3 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPST-NO (1 Form A)	2400 VA	General Purpose	60 VDC	Through Hole
Finder Relays, Inc. 34.51.7.024.5010	3.35 kOhms	Sealed - Flux Protection	Gold (Au) Silver Nickel (AgNi)	16.8 VDC	CCC cURus RINA VDE	400 VAC	7.1 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	24 VDC	Through Hole
Finder Relays, Inc. 34.51.7.024.4010	3.35 kOhms	Sealed - Flux Protection	Silver Tin Oxide (AgSnO)	16.8 VDC	CCC cURus RINA VDE	400 VAC	7.1 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	24 VDC	Through Hole
Finder Relays, Inc. 34.51.7.024.0010	3.35 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	16.8 VDC	CCC cURus RINA VDE	400 VAC	7.1 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	24 VDC	Through Hole
Finder Relays, Inc. 34.51.7.012.0010	840 Ohms	Sealed - Flux Protection	Silver Nickel (AgNi)	8.4 VDC	CCC cURus RINA VDE	400 VAC	14.2 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	12 VDC	Through Hole
Finder Relays, Inc. 34.51.7.048.0010	12.3 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	33.6 VDC	CCC cURus RINA VDE	400 VAC		5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	48 VDC	Through Hole
Finder Relays, Inc. 34.51.7.005.0010	130 Ohms	Sealed - Flux Protection	Silver Nickel (AgNi)	3.5 VDC	CCC cURus RINA VDE	400 VAC	38.4 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	5 VDC	Through Hole
Finder Relays, Inc. 34.51.7.060.5010	19.7 kOhms	Sealed - Flux Protection	Gold (Au) Silver Nickel (AgNi)	42 VDC	CCC cURus RINA VDE	400 VAC	3 mA	5 ms	Non Latching	3 ms	85 °C	-40 °C	PC Pin	6 A	SPDT (1 Form C)	2400 VA	General Purpose	60 VDC	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.39
		20	$ 7.86
		40	$ 6.64
		100	$ 6.29
		260	$ 5.59
		500	$ 5.24
		1000	$ 4.89

Description

General part information

34.51.7 Series

General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
