RDED-9S-LN(4-40)(55)

LTB

Hirose Electric USA, Inc.

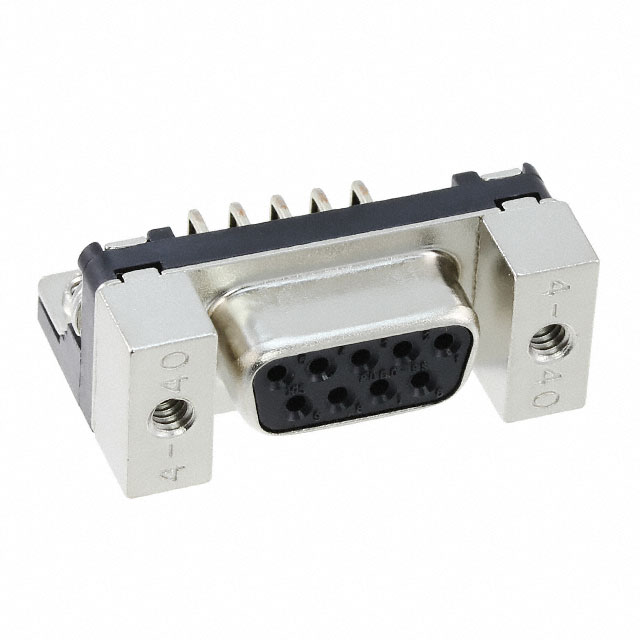

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RDxD Series

RDED-9S-LN(4-40)(55)

LTB

Hirose Electric USA, Inc.

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet RDxD Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDED-9S-LN(4-40)(55)

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	350 V

RDED Series

Part	Color	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Connector Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Material	Number of Positions	Flange Feature	Connector Type	Current Rating (Amps)	Voltage Rating	Shell Material, Finish	Material Flammability Rating	Termination	Contact Finish
Hirose Electric USA, Inc. RDED-9SA-LNA(4-40)(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold
Hirose Electric USA, Inc. RDED-9PE-LN(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9		Male Pins Plug	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold
Hirose Electric USA, Inc. RDED-9SE-LNA(4-40)(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold
Hirose Electric USA, Inc. RDED-9SE-LNA(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9		Receptacle Female Sockets	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold
Hirose Electric USA, Inc. RDED-9P-LN(4-40)(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9	Housing/Shell (4-40)	Male Pins Plug	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold
Hirose Electric USA, Inc. RDED-9S-LN(4-40)(55)	Black	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	DE E	1	Panel Mount Right Angle Through Hole	D-Sub	2	85 °C	-55 °C	Signal	Phosphor Bronze	9	Housing/Shell (4-40)	Receptacle Female Sockets	3 A	350 V	Nickel Plated Steel	UL94 V-0	Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 7.08

Description

General part information

RDED Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

RDxD Series

Datasheet
