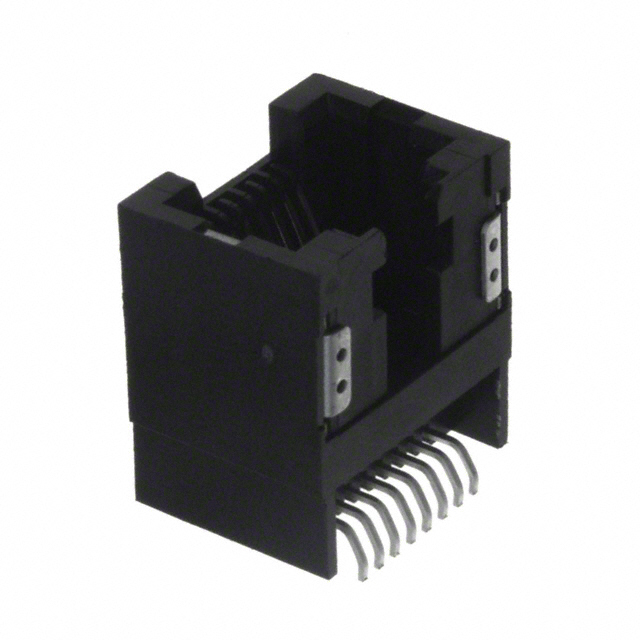

RJLSE4208101T
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJLSE4208101T
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJLSE4208101T |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Does Not Contain LED |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.86 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.74 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.86 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.74 | |||
| Tape & Reel (TR) | 160 | $ 1.66 | ||
| 320 | $ 1.50 | |||
| 480 | $ 1.38 | |||
| 800 | $ 1.34 | |||
| 1120 | $ 1.19 | |||
| 1600 | $ 1.15 | |||
| 4000 | $ 1.11 | |||
| 8000 | $ 1.03 | |||
Description
General part information
RJLSE42 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
