H3CWH-6018G

Active

Assmann WSW Components

IDC CBL - HHKC60H/AE60G/HHPL60H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC60H/AE60G/HHPL60H

Technical Specifications

Parameters and characteristics for this part

Specification	H3CWH-6018G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Rows	Contact Finish Thickness	Color	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Shielding	Features	Contact Finish	Cable Termination	Connector Type	Number of Positions
Assmann WSW Components H3CWH-6018M	2	Flash	Multiple Ribbon	0.05 "	1.27 mm	0.1 in	2.54 mm	457.2 mm	1.5 ft	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	IDC	Socket to Plug	60
Assmann WSW Components H3CWH-6036G	2	Flash		0.05 "	1.27 mm	0.1 in	2.54 mm	914.4 mm	3 ft	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	IDC	Socket to Plug	60
Assmann WSW Components H3CWH-6018G	2	Flash		0.05 "	1.27 mm	0.1 in	2.54 mm	457.2 mm	1.5 ft	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	IDC	Socket to Plug	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

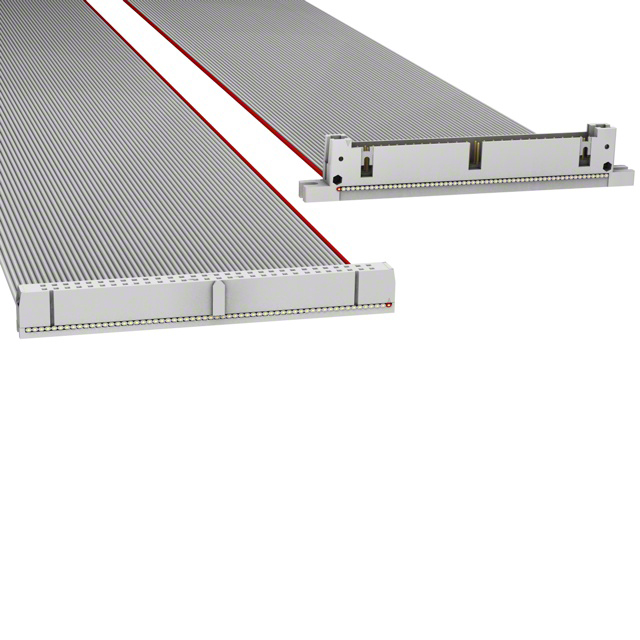

60 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
