FA1-NDSJ-C01-0

Active

Amphenol RF

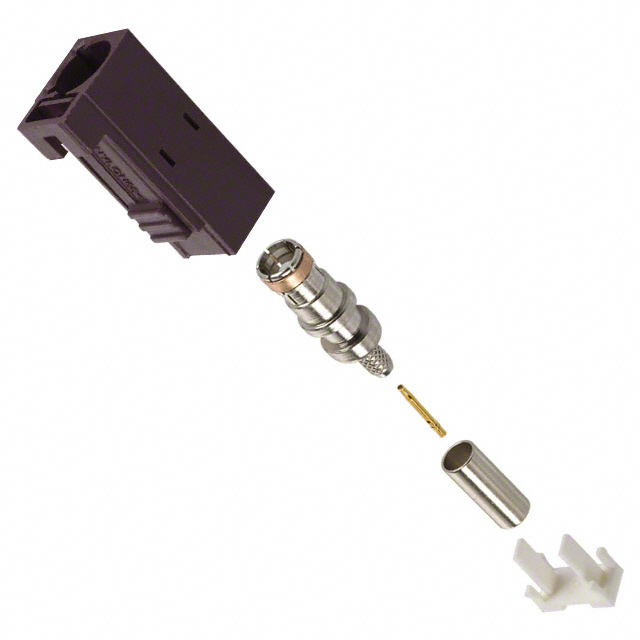

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NDSJ-C01-0

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code D
Frequency - Max [Max]	6000 MHz
Housing Color	Claret, Violet
Impedance	50 Ohms
Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Center Contact Material	Connector Style	Body Material	Frequency - Max [Max]	Insertion Loss	Contact Termination	Housing Color	Dielectric Material	Impedance	Cable Group	Connector Type	Includes	Body Finish	Mounting Type	Features	Fastening Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Shield Termination
Amphenol RF FA1-NDSJ-C04-6	Beryllium Copper	Fakra SMB	Brass	6000 MHz	0.3 dB	Crimp	Claret Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Nickel	Free Hanging (In-Line)	Code D	Latch Lock	Gold	100 °C	-40 °C	1	Crimp
Amphenol RF FA1-NDSJ-C01-6	Beryllium Copper	Fakra SMB	Brass	6000 MHz	0.3 dB	Crimp	Claret Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Nickel	Free Hanging (In-Line)	Code D	Latch Lock	Gold	100 °C	-40 °C	1	Crimp
Amphenol RF FA1-NDSJ-C01-0	Beryllium Copper	Fakra SMB	Brass	6000 MHz	0.3 dB	Crimp	Claret Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Nickel	Free Hanging (In-Line)	Code D	Latch Lock	Gold	100 °C	-40 °C	1	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
