0190380009

Active

Molex

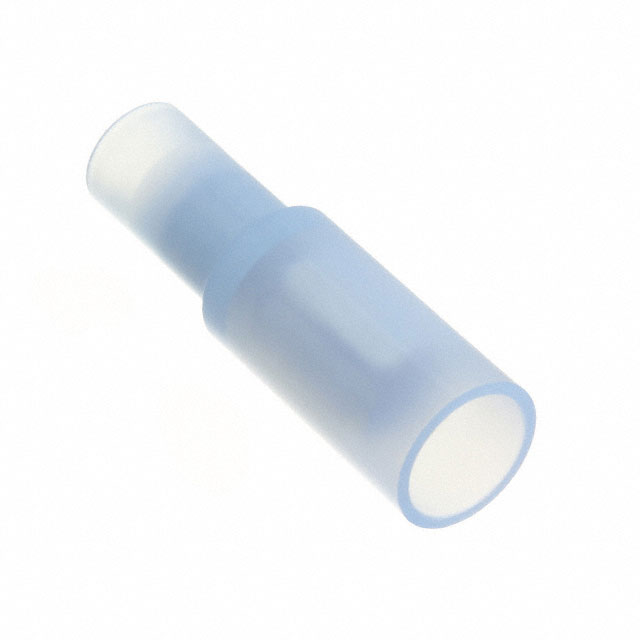

CONN TERM RCPT 14-16AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN TERM RCPT 14-16AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0190380009

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Diameter - Barrel [diameter]	3.96 mm
Diameter - Barrel [diameter]	0.156 in
Insulation	Fully Insulated
Insulation Diameter [diameter]	3.96 mm
Insulation Diameter [diameter]	0.156 in
Length - Barrel [x]	14.73 mm
Length - Barrel [x]	0.58 "
Length - Overall	25.4 mm
Length - Overall [x]	1 in
Material - Insulation	Nylon, Polyamide (PA)
Terminal Type	Female, Receptacle (Socket)
Termination	Crimp

Part	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Terminal Type	Length - Barrel [x]	Length - Barrel [x]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Overall	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Contact Finish	Material - Insulation	Color	Contact Material	Insulation Diameter	Insulation Diameter	Length - Overall [x]
Molex 0190380001	22 AWG	17.5 AWG	Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "	3.96 mm	0.156 in	25.4 mm	1 in	0.128 "	3.25 mm	Fully Insulated	Tin	Poly-Vinyl Chloride (PVC)	Red	Brass
Molex 0190380011			Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "			25.4 mm	1 in			Fully Insulated	Tin	Poly-Vinyl Chloride (PVC)	Blue	Brass	3.81 mm	0.15 in
Molex 0190380006	22 AWG	17.5 AWG	Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "			25.4 mm	1 in	0.128 "	3.25 mm	Fully Insulated	Tin	Nylon Polyamide (PA)	Red	Brass
Molex 0190380049			Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "			25.4 mm	1 in			Fully Insulated	Tin	Nylon Polyamide (PA)	Blue	Brass	3.81 mm	0.15 in
Molex 0190380013			Crimp	Male Pin (Plug)	10.5 mm	0.413 in	7.5 mm	0.295 in		0.984 in	0.148 in	3.76 mm	Fully Insulated	Tin	Nylon Polyamide (PA)	Blue	Brass			25 mm
Molex 0190380009			Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "	3.96 mm	0.156 in	25.4 mm	1 in	0.156 in	3.96 mm	Fully Insulated	Tin	Nylon Polyamide (PA)	Blue	Brass
Molex 0190380053			Crimp	Female Receptacle (Socket)	14.73 mm	0.58 "			25.4 mm	1 in			Fully Insulated	Tin	Poly-Vinyl Chloride (PVC)	Blue	Brass	3.81 mm	0.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Connector Female, Receptacle (Socket) 14-16 AWG Crimp Tin
