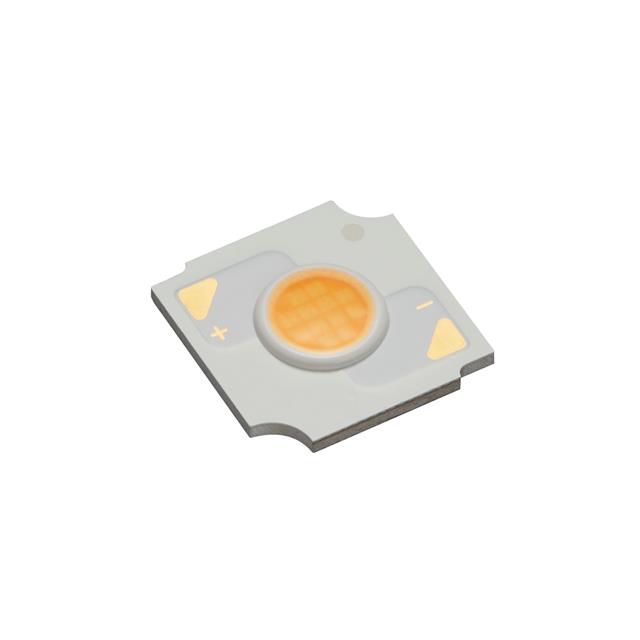

CLU7R3-0403E1-403H7X5

Active

Citizen Finedevice Co Ltd

LED COB CLU7R3 NEUT WHT SQ 4000K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU7R3 NEUT WHT SQ 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU7R3-0403E1-403H7X5

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	97
Current - Max [Max]	900 mA
Current - Test	525 mA
Features	With Connector
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.2 mm
Lumens/Watt @ Current - Test	109 lm/W
Luminous Flux @ Current/Temperature	741 lm
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	11.5 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	12.2 V

Part	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Configuration	Type	Voltage - Forward (Vf) (Typ)	Features	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Lumens/Watt @ Current - Test	Temperature - Test	Luminous Flux @ Current/Temperature	Height [z]	Current - Test	CRI (Color Rendering Index)	CCT (K)
Citizen Finedevice Co Ltd CLU7R3-0403E1-403H5X3	4.2 mm	900 mA	Square	Chip On Board (COB)	12.2 V	With Connector	Neutral White	11.5 mm	11.5 mm	Flat	119 lm/W	85 °C	809 lm	1.4 mm	525 mA	90	4000 K
Citizen Finedevice Co Ltd CLU7R3-0403E1-403H7X5	4.2 mm	900 mA	Square	Chip On Board (COB)	12.2 V	With Connector	Neutral White	11.5 mm	11.5 mm	Flat	109 lm/W	85 °C	741 lm	1.4 mm	525 mA	97	4000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.05

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU7R3 White, Neutral Square
