0820-SS-20
ActiveRAF Electronic Hardware
11/64HD X 7/16 X 4-40 THD
Deep-Dive with AI
Search across all available documentation for this part.
0820-SS-20
ActiveRAF Electronic Hardware
11/64HD X 7/16 X 4-40 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0820-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 4.37 mm |
| Head Diameter [diameter] | 0.172 " |
| Head Height | 2.72 mm |
| Head Height | 0.107 in |
| Length - Below Head [custom] | 0.438 in |
| Length - Below Head [custom] | 11.11 mm |
| Length - Overall [x] | 13.83 mm |
| Length - Overall [x] | 0.545 in |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | #4-40 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.93 | |
| 5 | $ 2.48 | |||
| 10 | $ 2.32 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.91 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.70 | |||
| 1000 | $ 1.63 | |||
Description
General part information
0820-SS Series

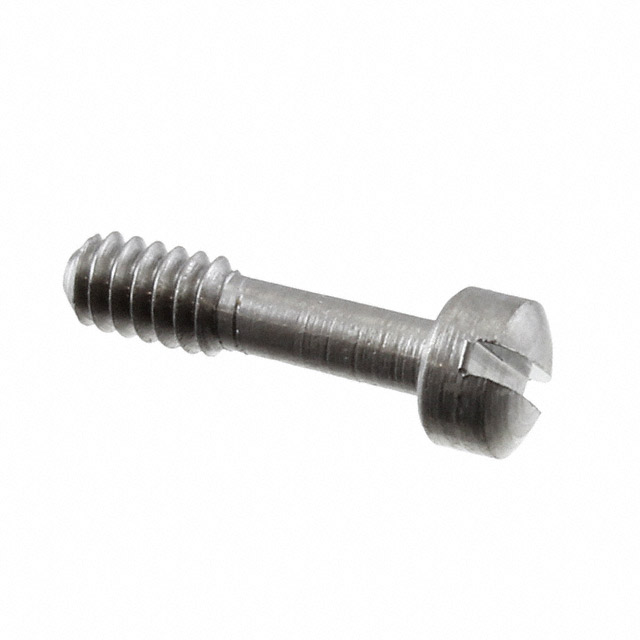

#4-40 Pan Head Panel Screw Slotted Drive Stainless Steel
Documents
Technical documentation and resources
