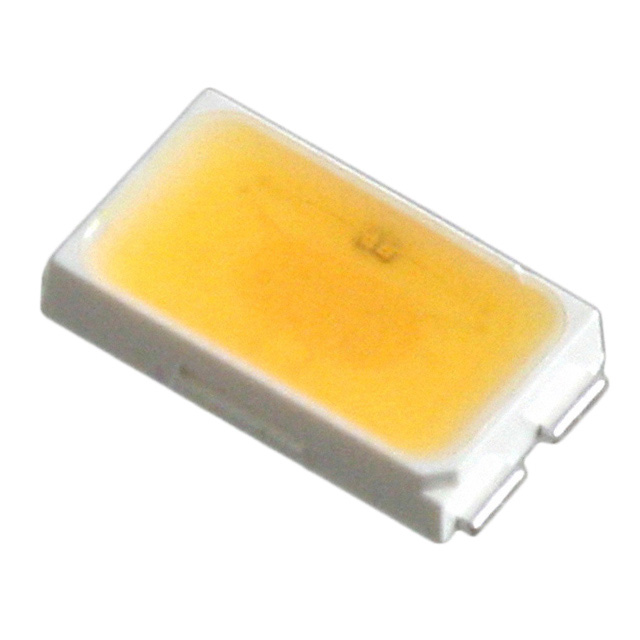

SAW8KG0B-X8J0-GA
ActiveSeoul Semiconductor
LED ACRICH A4 WM WHT 3000K 5630
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SAW8KG0B-X8J0-GA
ActiveSeoul Semiconductor
LED ACRICH A4 WM WHT 3000K 5630
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SAW8KG0B-X8J0-GA |
|---|---|
| CCT (K) | 3000 K |
| CCT (K) [Max] | 3200 K |
| CCT (K) [Min] | 2900 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 25 mA |
| Current - Test | 20 mA |
| Flux @ 25°C, Current - Test | 50 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Size / Dimension [x] | 0.205 in |
| Size / Dimension [x] | 5.2 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Thermal Resistance of Package [diameter] | 27 °C/W |
| Viewing Angle | 115 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3500 | $ 0.23 | ||
| 7000 | $ 0.21 | |||
| 10500 | $ 0.21 | |||
| 17500 | $ 0.20 | |||
| 24500 | $ 0.20 | |||
| 35000 | $ 0.19 | |||
Description
General part information
SAW8KG0 Series
LED Lighting Acrich A4 White, Warm 3000K (2900K ~ 3200K) 22V 20mA 115° 4-SMD, Flat Lead Exposed Pad
