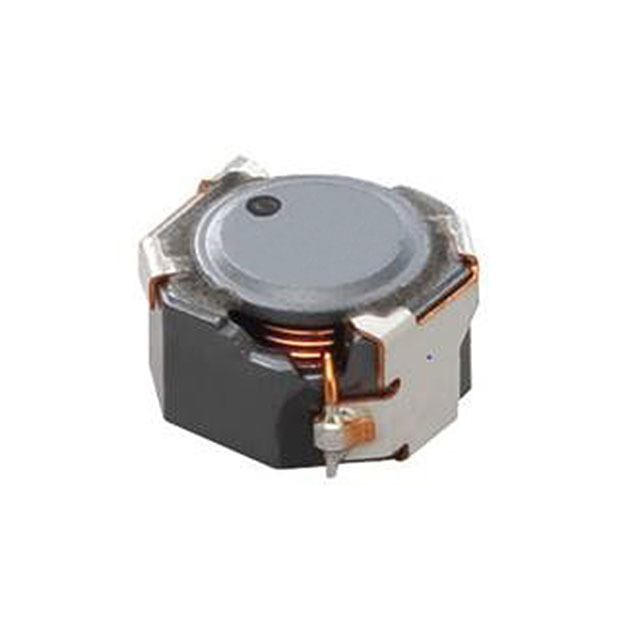

MDH6045C-330MB=P3

NRND

Murata Power Solutions Inc.

FIXED IND 33UH 1.3A 105MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDH6045C-330MB=P3

NRND

Murata Power Solutions Inc.

FIXED IND 33UH 1.3A 105MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDH6045C-330MB=P3

Current - Saturation (Isat)	960 mA
Current Rating (Amps)	1.3 A
DC Resistance (DCR)	105 mOhm
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.248 in
Size / Dimension [x]	6.3 mm
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.236 in
Tolerance	20 %
Type	Wirewound, Drum Core

MDH6045C Series

Part	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Inductance	Mounting Type	Tolerance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current Rating (Amps)	DC Resistance (DCR)	Inductance Frequency - Test
Murata Power Solutions Inc. MDH6045C-470MB=P3	760 mA	-55 °C	150 °C	AEC-Q200	47 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	1.1 A	130 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-151MA=P3	520 mA	-55 °C	150 °C	AEC-Q200	150 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	0.54 A	520 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-331MB=P3		-55 °C	150 °C	AEC-Q200	330 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	0.38 A	970 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-6R8NA=P3	2.5 A	-55 °C	150 °C	AEC-Q200	6.8 µH	Surface Mount	30 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	2.5 A	27 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-470MA=P3	880 mA	-55 °C	150 °C	AEC-Q200	47 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	1 A	160 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-100MB=P3	1.8 A	-55 °C	150 °C	AEC-Q200	10 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	2 A	38 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-150MB=P3	1.4 A	-55 °C	150 °C	AEC-Q200	15 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	1.8 A	55 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-330MA=P3	1 A	-55 °C	150 °C	AEC-Q200	33 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	1.2 A	130 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-330MB=P3	960 mA	-55 °C	150 °C	AEC-Q200	33 µH	Surface Mount	20 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	1.3 A	105 mOhm	100 kHz
Murata Power Solutions Inc. MDH6045C-1R5NA=P3	5 A	-55 °C	150 °C	AEC-Q200	1.5 µH	Surface Mount	30 %	Drum Core Wirewound	0.189 "	4.8 mm	Shielded	Ferrite	6 mm	0.248 in	6.3 mm	0.236 in	Nonstandard	3.6 A	13 mOhm	100 kHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.31
	Digi-Reel®	1	$ 1.31
	Tape & Reel (TR)	1000	$ 0.64
		3000	$ 0.62
		5000	$ 0.60
		10000	$ 0.58

Description

General part information

MDH6045C Series

33 µH Shielded Drum Core, Wirewound Inductor 1.3 A 105mOhm Nonstandard
