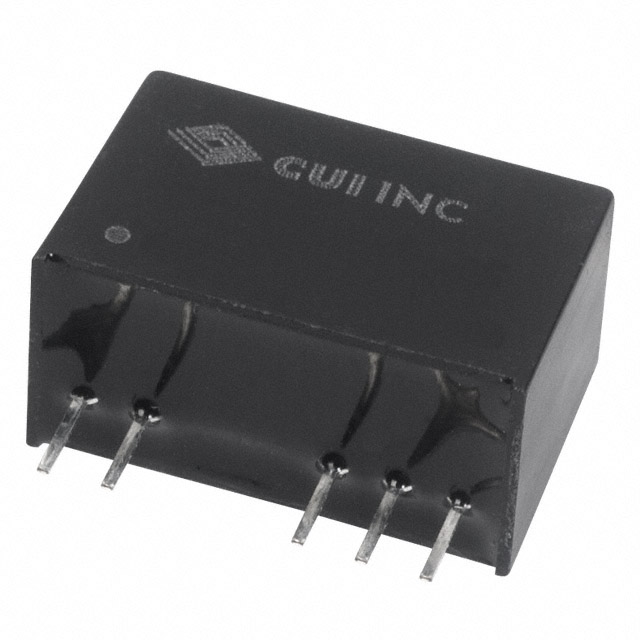

VQA-S15-D17-SIP
CUI Inc.
DC DC CONVERTER 17V -8.6V 2W
Deep-Dive with AI
Search across all available documentation for this part.
VQA-S15-D17-SIP
CUI Inc.
DC DC CONVERTER 17V -8.6V 2W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VQA-S15-D17-SIP |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB Scheme, UL, IEC |
| Current - Output (Max) | 40 mA, 80 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Power (Watts) | 2 W |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 15.5 V |
| Voltage - Input (Min) [Min] | 14.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 2 | -8.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.24 | |
| 5 | $ 8.12 | |||
| 10 | $ 8.00 | |||
| 25 | $ 7.77 | |||
Description
General part information
VQA-S15 Series
Isolated Module DC DC Converter 2 Output 17V -8.6V 80mA, 40mA 14.5V - 15.5V Input
Documents
Technical documentation and resources
No documents available
