1241.6924.1121000

Obsolete

SCHURTER Inc.

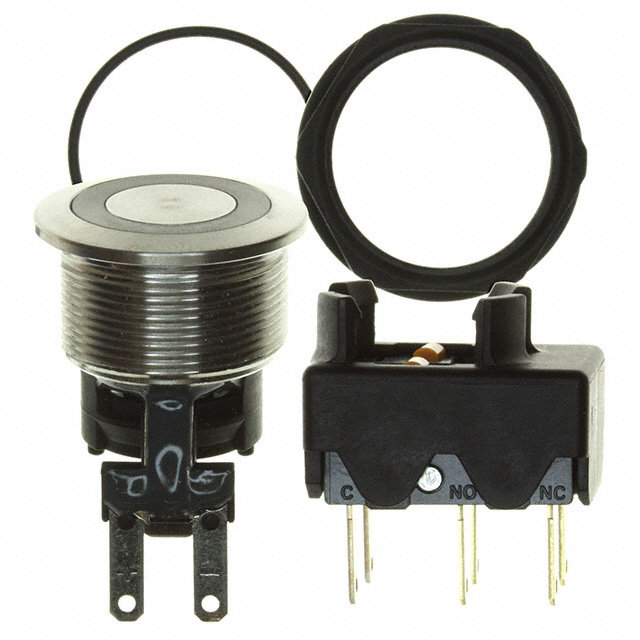

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6924.1121000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

Part	Type	Electrical Life	Panel Cutout Dimensions [diameter]	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Voltage Rating - AC	Illumination Voltage (Nominal)	Current Rating (Amps)	Ingress Protection	Actuator Type	Color - Actuator/Cap	Illumination Type, Color	Mounting Type	Switch Function	Actuator Marking
SCHURTER Inc. 1241.6924.1122000	Anti-Vandal Illuminated	200000 Cycles	19.1 mm	1500000 Cycles	-25 °C	85 °C	DPDT	Quick Connect - 0.110" (2.8mm)	125 V	24 V	5 A	IP40	Button Flush Round	Silver	Green LED	Panel Mount Front	On-Mom	No Marking
SCHURTER Inc. 1241.6924.1121000	Anti-Vandal Illuminated	200000 Cycles	19.1 mm	1500000 Cycles	-25 °C	85 °C	DPDT	Quick Connect - 0.110" (2.8mm)	125 V	24 V	5 A	IP40	Button Flush Round	Silver	LED Red	Panel Mount Front	On-Mom	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.55

General part information

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
